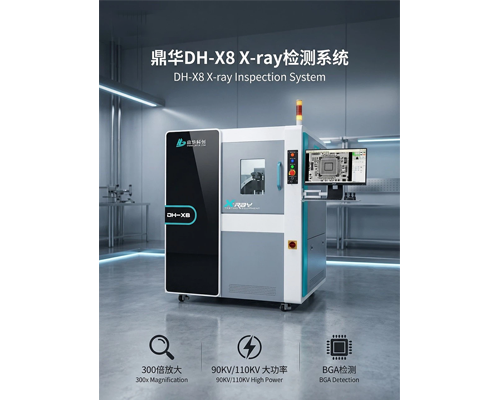

Advanced PCB Scanning
This PCB X-ray machine delivers precise non-destructive testing for electronics and manufacturing. As a versatile industrial X-ray machine, it features a tilting detector and programmable stage for multi-angle inspection—ideal for automotive ECU tester applications and PCB assembly analysis.
Features:
• Non-Destructive Inspection
• High-Resolution Imaging
• Multi-Angle Scanning
• Programmable Motion Stage
• Tilting Detector System
Our state-of-the-art PCB X-ray Machine redefines precision non-destructive testing. As a versatile Industrial X-ray Machine, it delivers unparalleled capabilities for quality control and failure analysis across complex electronics and components.
1.XY-Axis Motion Stage: Enables extensive scanning coverage, significantly enhancing product inspection throughput and reliability.
2.60° Tilting Image Detector: Facilitates effortless observation of side-wall defects in components such as BGAs, ensuring comprehensive ECU tester-grade analysis for critical automotive electronics.
3.Real-Time Line Beam Source & Receiver: Utilizes a high-sensitivity Japanese HAMAMATSU sealed source coupled with a high-definition digital flat-panel detector for crisp, real-time imaging.
4.Visual Automated Navigation Window: User-friendly interface allows operators to quickly locate and zoom into inspection targets, streamlining the workflow.
5.Spacious Loading Platform: Features a large 550mm x 670mm inspection chamber, accommodating a wide range of product sizes.
6.Programmable Inspection Recipes: Ideal for high-volume automated inspection, boosting efficiency and ensuring consistent results batch after batch.
7.Digital Work Library Management: Save, edit, and manage inspection programs for repeatable and traceable quality checks.
8.S/ERP System Integration: Supports customizable connectivity for seamless data management and integration into smart factory systems.
This premium Industrial X-ray Machine is engineered for excellence in multiple sectors:
1.Semiconductor & Advanced Packaging: IC, BGA, CSP, Flip Chip inspection.
2.PCB & Assembly (SMT/DIP): Comprehensive PCB X-ray Machine for solder joints, voids, and component placement.
3.Automotive Electronics: Critical inspection for ECU tester applications, sensors, connectors, and control modules.
4.Automotive Parts: Aluminum castings, moldings, and other safety-critical components.
5.New Energy: Battery cell & module inspection for lithium-ion batteries.
6.Specialized Industries: Photovoltaic cells, molded plastics, ceramic substrates, and more.
Machine Specifications ：
| Item | Parameter | Item | Parameter | |
| Dimension： | 1500 × 1500 × 2100mm | Power Supply： | AC220V 10A | |
| Weight： | approx 1500KG | Packed weight： | Approx. 1800KG | |
| Package dimensions： | 1600 × 1600 × 2200mm | Power consumption： | 1.7KW | |
| Loading method： | manual | Detection mode： | offline | |
| Operation method： | manual | Permission management： | password |
X-ray tube：
| Item | Parameter | Item | Parameter |
| Light pipe type： | closed | Phototube current： | 200μA |
| Light tube voltage： | 90KV | Focus size： | 3-5um |
| Cooling method： | air cooling | Geometric magnification： | 300 times |
Imaging system：
| Item | Parameter | Item | Parameter |
| Detector： | New TFT | Radiation tolerance： | 10000Gy |
| Effective imaging area： | 130 × 130mm | Protection level： | IP65 |
| Pixel matrix： | 1536 × 1536 | Size： | 176 × 176 × 47mm |
| Pixel size： | 85μm | Weight： | 3.5KG |
| Spatial resolution： | 5.8lp/mm | Power： | 9W |
| Frame rate： | 20fps | Operative temperature： | 10-40℃ |
| AD conversion digits： | 16bit | Storage temperature： | -10-55℃ |
| Data interface： | Gigabit Ethernet | Operating humidity： | 20-90%HP (No condensation) |
| Trigger mode： | continuous acquisition, pulse synchronization | Storage humidity： | 10-90%HP (No condensation) |
| X-ray energy range： | 40KV-130KV | Image Settings: | Brightness, Contrast, Auto Gain and Exposure |
Industrial PC
| Item | Parameter | Item | Parameter |
| Monitor： | 21.5-inch high-definition monitor | Operating System： | Windows 10 64-bit |
| Operating instructions： | Keyboard/Mouse | Hard drive/Memory： | 1TB/8G |
Radiation Dose:
Utilizes a steel-lead-steel protective structure, with the front door viewing window made of lead-containing glass for radiation shielding. At any position 20mm from the enclosure, the measured radiation dose equivalent rate ≤ 1 μSv/h, complying with international standards.
Lead Glass Viewing Window:
Transparent lead glass isolates radiation while allowing observation of the test object.
Safety Interlock:
All maintenance access doors are equipped with two high-sensitivity limit switches. Once any door is opened, the X-ray tube is immediately and automatically de-energized.
Electromagnetic Safety Door Switch:
The viewing window is fitted with an electromagnetic switch that prevents the window from being opened while the X-ray tube is in operation.
Emergency Stop Button:
Located next to the operator’s position; pressing it immediately cuts off power.
Viewing Window:
Features a transparent viewing window, allowing direct observation of the sample during operation.
X-ray Tube Protection:
The X-ray tube must be shut down before leaving the software interface to perform other operations.
Choose our system not just as a PCB X-ray Machine, but as a complete Industrial X-ray Machine ecosystem designed to meet the rigorous demands of modern manufacturing and quality assurance, particularly for advanced ECU tester validation and beyond.
