PDR IR-E6

Precision Rework, Redefined

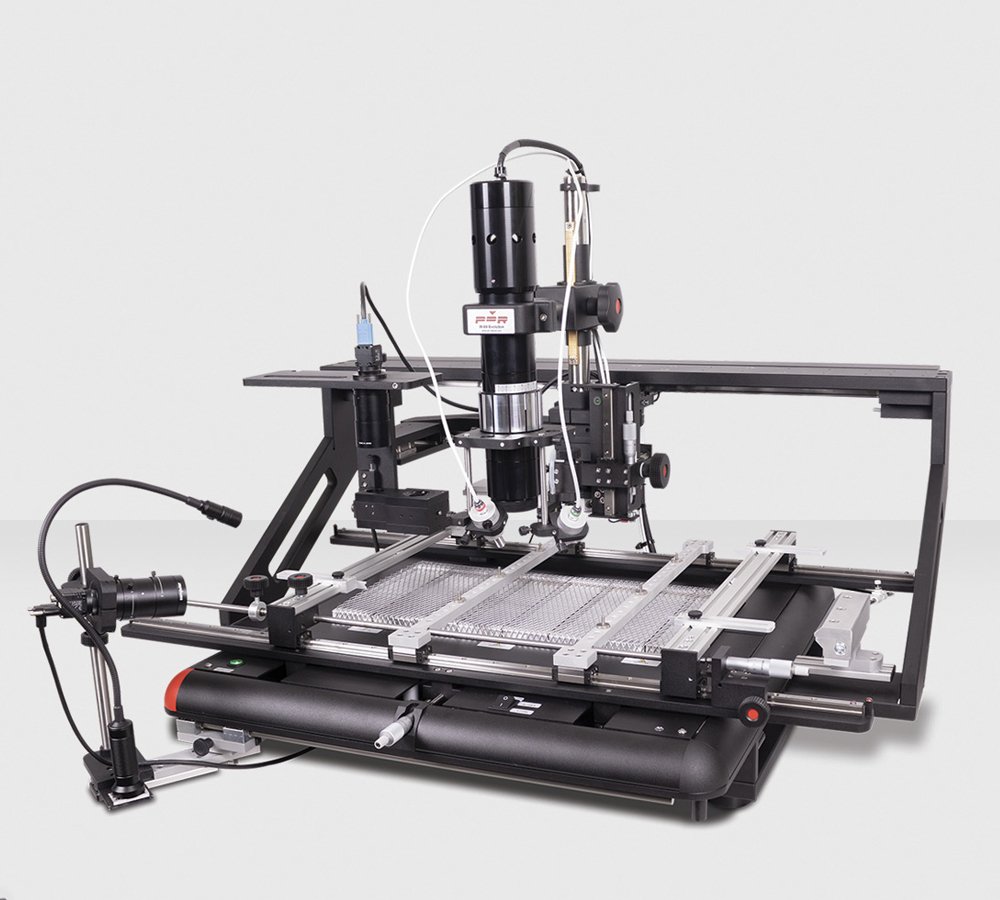

PDR IR-E6

BGA/SMT Rework Station for XL PCBs

PDR IR-E6 is a high-precision IR rework system designed for safe and efficient removal and replacement of SMD, BGA, and advanced semiconductor components. It delivers uniform heat control, advanced profiling, and repeatable performance, making it ideal for high-reliability electronics repair and production environments.

Gantry Mounted Advanced Focused IR component heating
Large Quartz IR PCB preheating with 3 zones
24”/620mm PCB Capacity
Split Beam prism system for simultaneous PCB/component viewing
Precision Components Pick and Placement up to 10um

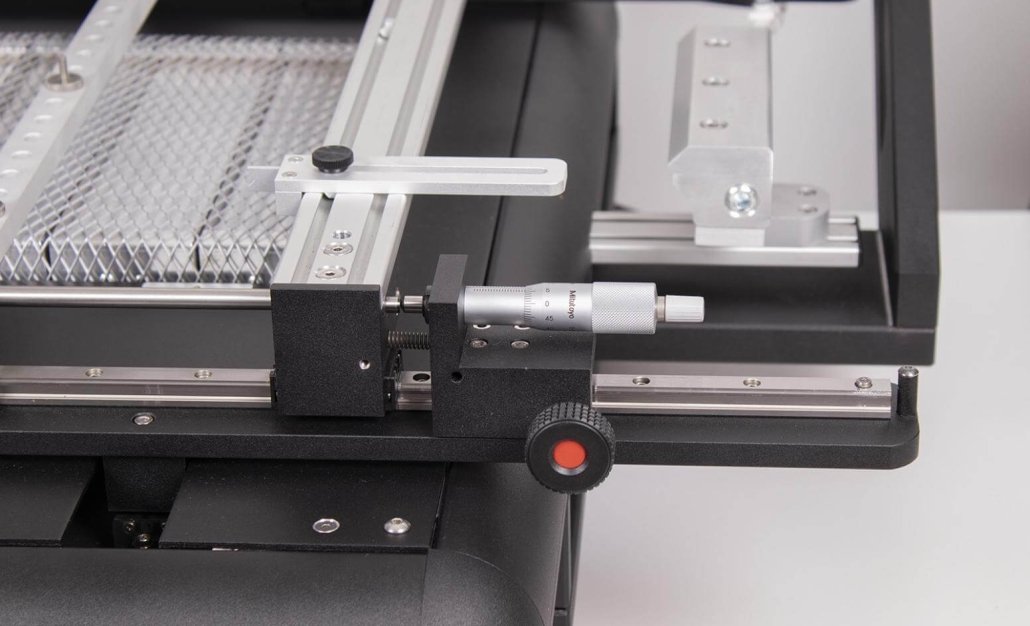

Precision PCB handling
Component Nest/Flux Application Facility

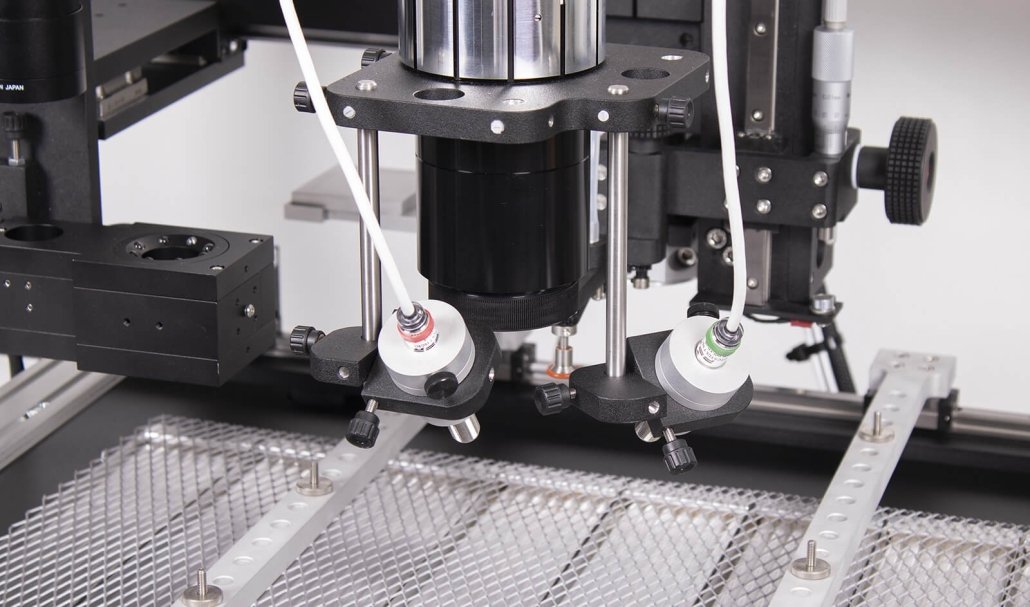

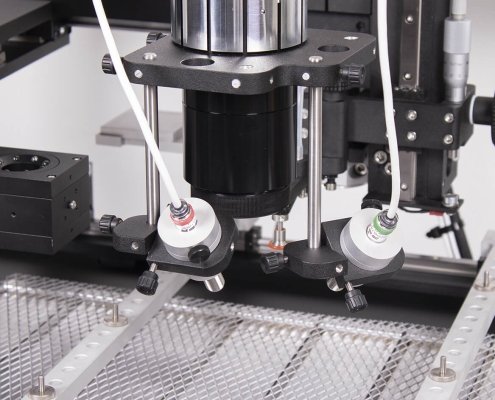

Closed Loop Non-Contact Temperature Sensing

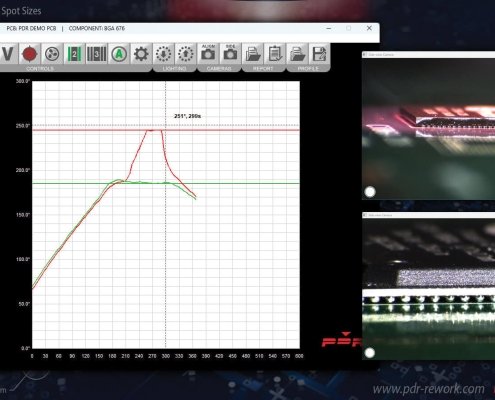

Advanced Automatic Thermal Process Control
Reflow Process Observation Camera
PCB Forced Air Cooling

Technical Data Applications Accessories FAQ VIdeo

Previous Next

Bench Area: 2000mm (W) x 1000mm (D)
Weight: 100kg
Warranty: 2 years

Power & Electrical

Voltage/Frequency: 208–240V, 50/60Hz, up to 3KW

Heating System

Top Heater Power: 150W Focused Infrared (Ø70mm spot)
PCB Preheater Power: 4000W Dark IR
Preheater Heating Area: 500 x 240mm (19.6” x 9.4”)
Preheater Zones: 3 Zones

Spot Sizes Included

F700: Ø25–70mm
F200: Ø10–28mm

Component Handling

Placement System: Split-beam prism alignment with x50 magnification
Placement Accuracy: Up to 10µm

Temperature Sensing

Component: Non-contact IR sensor
PCB: Non-contact IR sensor

PCB & Component Capacity

Max PCB Size: 18” x 24” (460 x 620mm)
Max Component Size: 55 x 55mm (2.1” x 2.1”)
Min Component Size: 01005
Reworkable Area: 11.9” x 20” (304 x 508mm)

Control & Software

TC Channels: 4,
Operating Software: PDR Thermoactive Software Suite (Windows 10+)

Certifications

CE, UKCA,
NFPA 79

Desoldering, placement, and soldering of all types of surface-mounted devices (SMD).
BGA, QFN, LED, CSP, 0201, 01005

PDR Lens Attachments

AC-F150	F150 (Ø4 – 18mm spot size)
AC-F400	F400 (Ø12 – 35mm spot size)

PDR Micro Component Kit

UGMC01

PDR Micro Component Kit (F150 lens attachment, low profile pickup head, SP03031:SP03030:SP03049 pick-up tips)

Spares Kits

AC02009	Consumables kit (lamp+socket, gel flux, roll 25mm black tape, vac cup, springs, O rings)
AC02008	Consumables kit (lamp+socket, gel flux x 2, roll 25mm black tape, vac cup, springs, O rings, Lens No1, Cold Mirror)

Solderpaste Print Part System

PDRPP01	Print Part System
PDRPP02	Print Part System Additional Stencil

PDR Reball Kit

PDRRB01	PDR BGA Reball Set (BGA foil & frame, paste foil & frame, hi-temp esd nest, squeegee blade)
PDRB02	PDR BGA Reball Additional Component Set

Other

SP05029	Laser Alignment Tool
SC020	Controller & Sensor Calibration Check Kit
SP05017	PCB Sensor Contact Probe

Why is it called Focused Infrared and how is it different from normal IR?

PDR uses Focused Infrared, meaning the IR energy is precisely concentrated onto a defined spot. Unlike normal IR that spreads heat over a wide area, focused IR delivers controlled, uniform, and localized heating, ideal for sensitive SMD/BGA components.

Is PDR’s IR Technology Safe? Do we need eye protection?

Yes, PDR’s IR technology is completely safe. It uses medium-wave IR, which is non-harmful when used correctly. No special eye protection is required, as the system is engineered for operator safety and low-risk operation.

Will the IR beam burn my fingers?

No. Focused IR heats the component and PCB surface, not the surrounding air. If you briefly place your hand near the beam, you will not be burned—but direct contact with heated components should always be avoided.

How does PDR’s Focused IR work?

PDR’s Focused IR uses a precision-controlled IR lamp and optical system to concentrate heat exactly where required. Real-time temperature feedback ensures accurate, repeatable thermal profiles without overheating nearby components.
