X-ray Parts Counter

Fast, Accurate, Non-Destructive

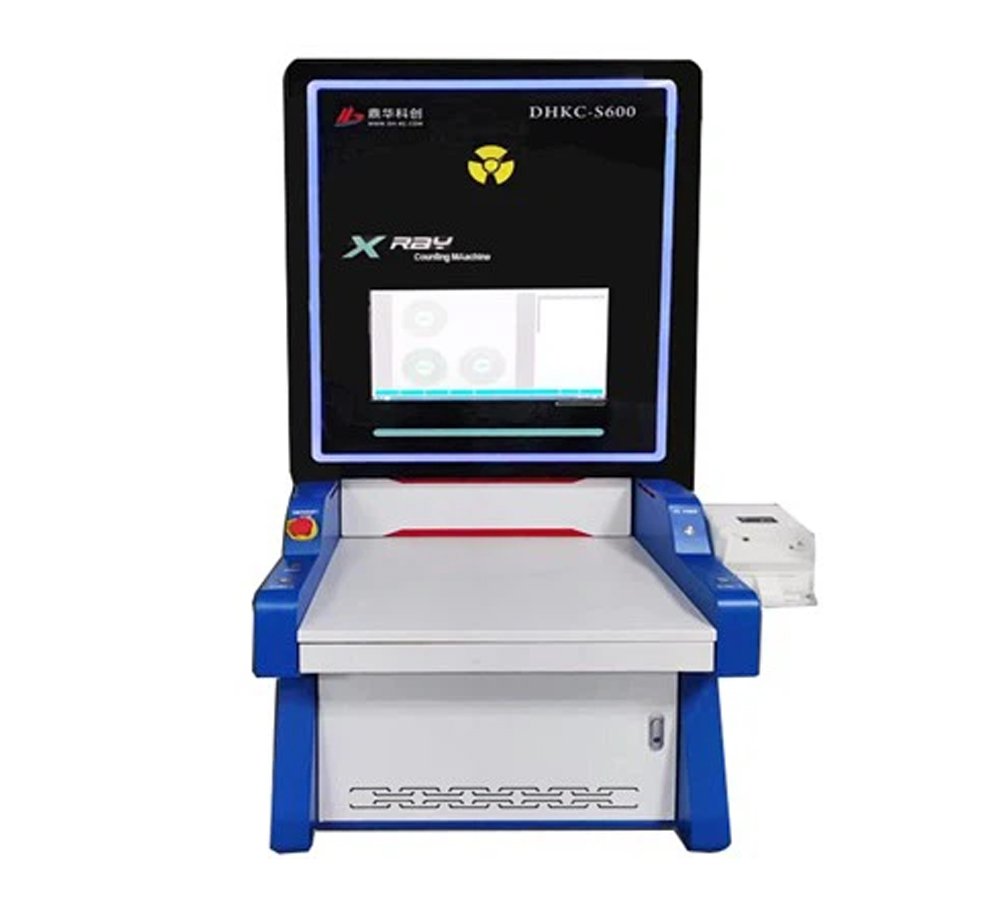

X-ray Parts Counter

X-ray parts counters use non-destructive testing methods, allowing the counting process to be fast, reliable, and efficient. Unlike other counting methods, X-ray parts counters can scan multiple parts at once and provide accurate results in real-time. This makes it the perfect solution for manufacturers and quality managers who need to count a large number of components quickly and with precise accuracy.

High-resolution X-ray imaging for internal PCB inspection
Accurate detection of hidden solder and component defects
Non-destructive analysis for multilayer and complex PCBs
Real-time imaging with advanced inspection software
Safe, fully shielded design for industrial use

Product Description Product Specification Products Features Products Applications

Previous Next

X ray parts counters use non-destructive testing methods, allowing the counting process to be fast, reliable, and efficient.
Unlike other counting methods, x ray parts counters can scan multiple parts at once and provide accurate results in real-time. This makes it the perfect solution for manufacturers and quality managers who need to count a large number of components quickly and with precise accuracy.
What’s more, x ray parts counters are incredibly easy to use, and the software gives clear instructions, allowing operators to quickly and easily count parts without needing extensive training or experience. This means that manufacturers can improve their efficiency and productivity while reducing the risk of errors and inconsistencies.
X-ray parts counters, also knows as smt reel x ray counter, are a game-changer for manufacturers and quality managers who need to count small components accurately and efficiently. With this technology, companies can increase productivity, reduce errors, and improve the quality of their products, leading to greater success in the marketplace.

Power supply	AC 110~240V 50/60hz
Rated power	1700W
Components inspected space	drawer platform, auto-in and out
Loading methods	Operator
Running protective way	IR inductive(stop moving when hand or obstacle in)
Radiation safety protection	≤1μSV/H
Light tube voltage	50KV
X ray radiation Angle	20°
Light tube current	0-1mA
Cooling method	Wind
Prober	Non-silicon crystal 17-inch flat plate
Effective imaging area	430 ×430mm
Display	24-inch HD monitor
Machine dimension	900 ×1500 ×1950mm
Weight	Approx 900kg

50KV Xray tube, longer lifetime, maintenance-free.
17″ Non-silicon crystal 17 flat panel detector.
Ultrafast counting, 4 reels only need 7s in total.

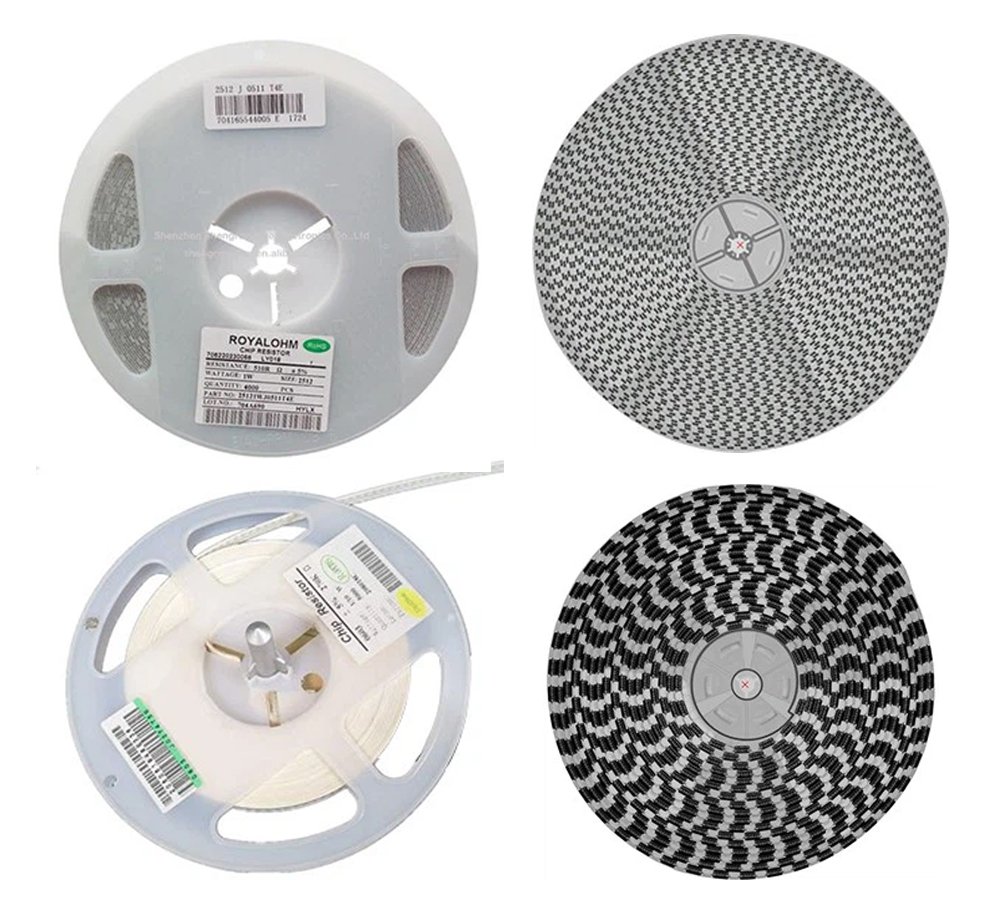

Support max 17″ (430mm) reel or tray with moisture proff bag.
Permanently updated AI deep learning algorithm, supporting MES, ERP, WMS, and other management systems.
No need to input the material in the factory in advance, direct use.
Compared with the traditional parts counter, greatly improving the efficiency, accuracy, saves manpower.
Counting result printed automaitcally.
x ray component counter used for ic,led,plcc,qfn and so on.

X-ray parts counter application is an essential tool that enhances the efficiency of modern factories, whose benefits extend beyond inventory management and provide valuable insights into equipment usage, which is more advanced for society.

In addition to inventory accuracy, X-ray parts counters help streamline production planning, reduce material shortages, and minimize downtime on the factory floor. By providing real-time, reliable component data, they support smarter decision-making, improve operational efficiency, and contribute to more intelligent and sustainable manufacturing systems.

Furthermore, the use of X-ray parts counters reduces manual handling and human error, enhancing workplace safety and consistency in operations. Their ability to deliver fast, non-destructive, and data-driven insights makes them a key technology for advanced factories moving toward automation and Industry 4.0 standards.
