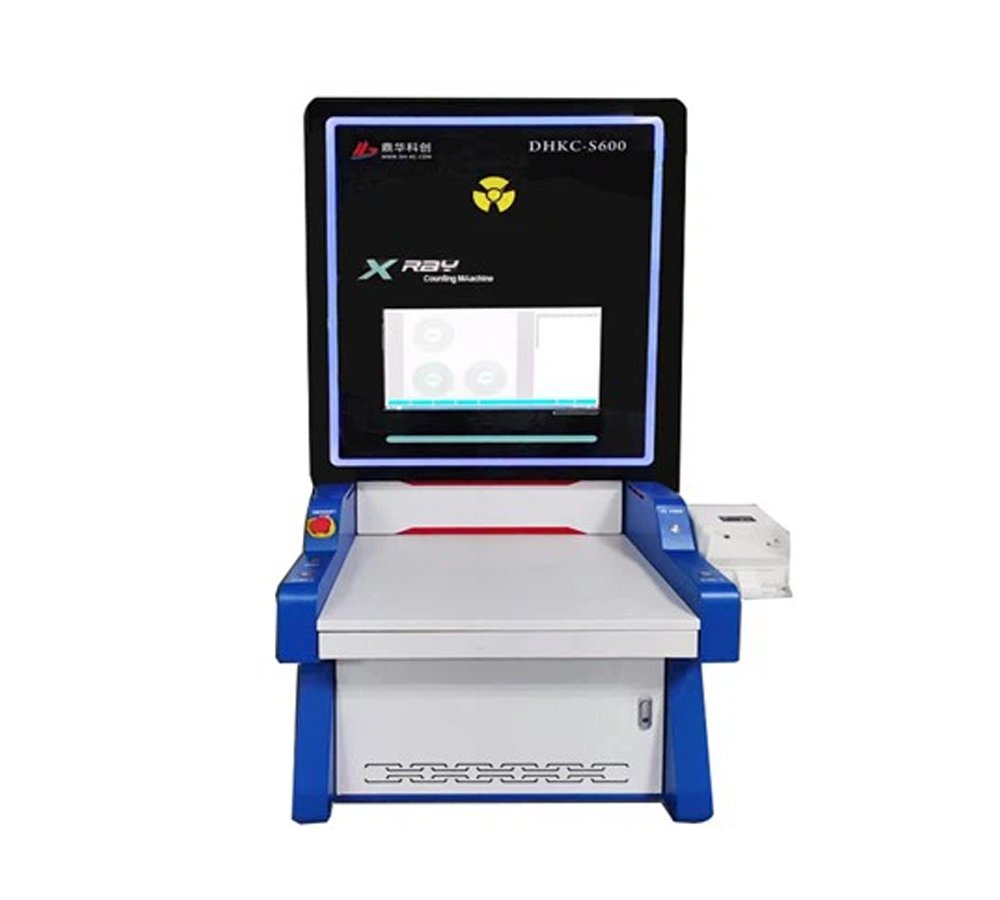

X-ray Counting System

Fast, Accurate, Non-Destructive Counting

X-ray Counting System

X-RAY counting system is used for fast counting of reel materials used in the production of the SMT industry. Use non-destructive X-ray imaging technology to detect production materials and obtain image information, and quickly count through image algorithms to obtain the actual quantity of materials.

Non-destructive counting of electronic components in sealed reels and packages
High-resolution X-ray imaging for precise component visibility
Automatic counting with fast processing and reliable results
Supports reels, trays, tubes, and multiple packaging formats
Reduces inventory errors and improves material management efficiency

Product Description Product Specification Equipment Function

Previous Next

X-ray counting system is a modern inspection and inventory hand tool engineered to rapidly and precisely count electronic components, like resistors, capacitors, ICs, diodes, and connectors-in seals contained in reels, tubes, or trays. It employs non-destructive technology to inspect and quantify components without breaking the seal.

By automatically identifying and counting components through high-resolution X-ray images and intelligent software algorithms, the machine delivers quick, accurate, and trustworthy output in improving the efficiency of SMT lines in production, storage rooms, and material inspection.

Complete Machine State
Dimension	1500× 900×1950mm	Supply voltage	AC220V 10A
Weight	Approx 500KG	Gross weight	Approx 700KG
Packing measurement	1500 ×1050 ×2050mm	Rated power	1.7KW
Drawer platform	Automatic	Counting methods	Off-line
Loading methods	Labouor	Authority management	Passwords

X-ray Light Tube
Light tube voltage	50KV	Light tube current	0-1mA
Focal spot size	15μm	X light radiation Angle	20°
Cooling-down method	Blowing	Radiation safety with international standards	≤1μSV/H Comply

IPC
Display	A 24-inch HD monitor	Operating system	Windows10 64
Support docking MES, ERP and WMS intelligent storage system		Hard disk / memory	1TB/8G

Counting Parameters
Material tray size	7″-17″tray	Material tray thickness	≤88mm
Minimum material specifications	01005	Detection accuracy	99.98%(0201 for instance)
Counting speed	7″,about 6-8s/4 reels	Load table size/ load-bearing capacity	400×400mm/ 10kg

1. Compared with the traditional counter, the intelligent point material machine does not need to open the material plate and transfer the material plate.

2. Adopt a side window closed tube x-ray source, long life, and maintenance-free.

3. The flat panel detector uses a 14-inch ultra-clear screen, with clear imaging and no deformation.

4. The diameter of the measurable tray is 7-14 inches (put 4 7-inch trays or 1 pcs 14-inch tray at the same time)

5. Accelerate the inventory speed, reduce labor costs.

6. The drawer automatically enters and exits, and the grating automatically senses to prevent hands from being pinched, and is easy to take.

7. An AI-capable algorithm and an innovative detection environment.

8. Docking with system data such as mes / ep / wms, exchange data in real time, upload and update the point material information in

time.

9. Full induction recognition of material labels, anti-error and anti-mixing, real-time docking with printers.

10. Reference to the human body sitting posture design, not easy to fatigue, occupy less space, convenient to move.

11. Suitable for various types of patch components, SMD devices above 01005.
