Compact Repair System

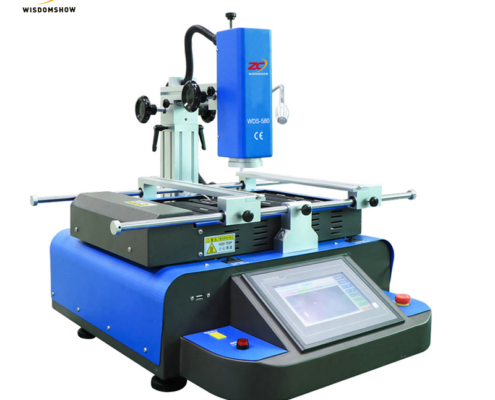

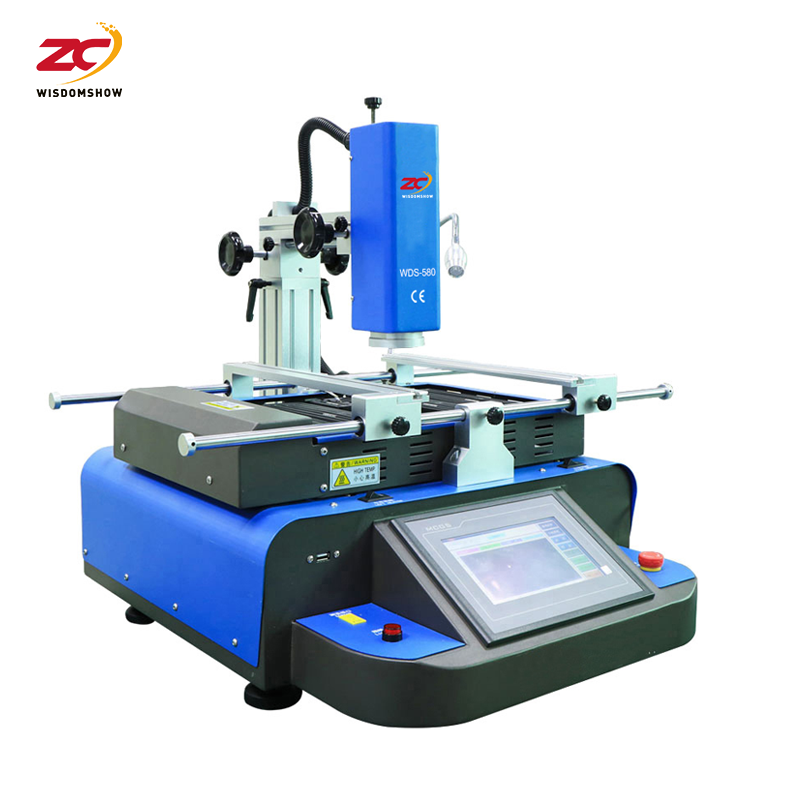

Wisdomshow WDS-580 Manual BGA Rework Station for Electronics PCBA Motherboard PS5 PS4 Consoles Repairing One Year Warranty

The Wisdomshow WDS-580 Manual BGA Rework Station is a dependable and budget-friendly solution designed for accurate PCB and motherboard repair across mobile devices, laptops, and gaming consoles such as PS5 and PS4. Featuring a manual operation system, it provides technicians with full control over the rework process, ensuring precise chip removal and placement. Its stable heating performance and compact design make it easy to use while protecting sensitive electronic components from damage. Built with durable materials and backed by a one-year warranty, the WDS-580 is an ideal choice for repair professionals seeking consistent, efficient, and reliable results.

Manual operation provides full control for precise rework
Stable heating ensures safe and efficient PCB repair
Suitable for mobiles, laptops, and gaming consoles
Compact design allows easy handling and space saving
Durable build ensures long-lasting performance
Comes with one-year warranty for reliable support

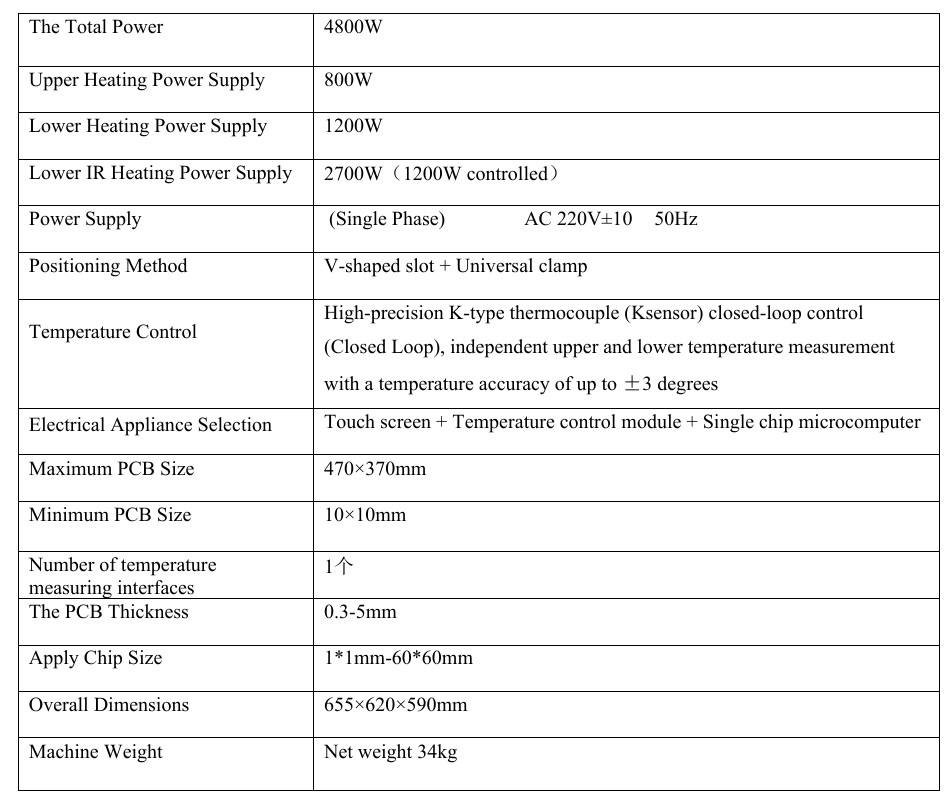

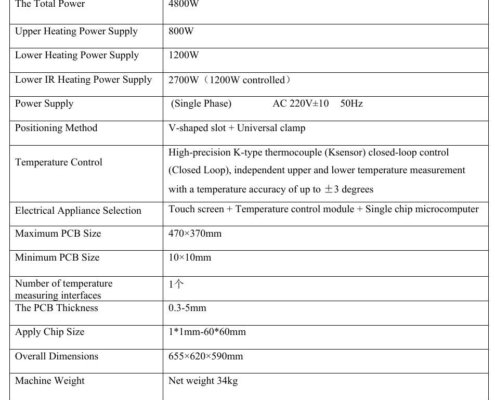

The Total Power	4800W
Upper Heating Power Supply	800W
Lower Heating Power Supply	1200W
Lower IR Heating Power Supply	2700W (1200W controlled)
Power Supply	(Single Phase) AC 220V ±10, 50Hz
Positioning Method	V-shaped slot + Universal clamp
Temperature Control	High-precision K-type thermocouple (K sensor) closed-loop control (Closed Loop), independent upper and lower temperature measurement with accuracy up to ±3°C
Electrical Appliance Selection	Touch screen + Temperature control module + Single chip microcomputer
Maximum PCB Size	470 × 370 mm
Minimum PCB Size	10 × 10 mm
Number of temperature measuring interfaces	1
The PCB Thickness	0.3–5 mm
Apply Chip Size	1 × 1 mm – 60 × 60 mm
Overall Dimensions	655 × 620 × 590 mm
Machine Weight	Net weight 34 kg

Item	WDS-580
Rated Capacity	2 KW
Type	Manual Soldering
Voltage	110 / 220 V
Place of Origin	Guangdong, China
Condition	New
Brand Name	WDS
Current	30 A
Dimensions	1020 × 507 × 350 mm
Rated Duty Cycle	15–25 Minutes
Usage	PCB Soldering
Warranty	1 Year
Weight	66 kg

Voltage	110/220 V	Type	Manual Soldering
Condition	New	Warranty	1 Year
Rated Capacity	2 KW	Current	30 A
Brand Name	WDS	Dimensions	1020 × 507 × 350 mm
Place of Origin	Zhejiang, China	Duty Cycle	15–25 Minutes
Usage	PCB Soldering	Weight	66 kg

Selling Units	Single Item
Package Size	112 × 62 × 56 cm
Gross Weight	66 kg
