Wisdomshow SMT BGA X-Ray Inspection

Precision Void Detection

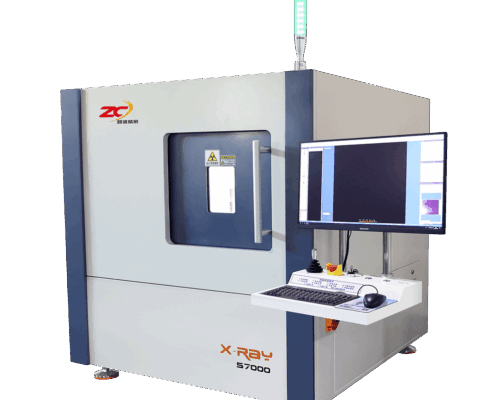

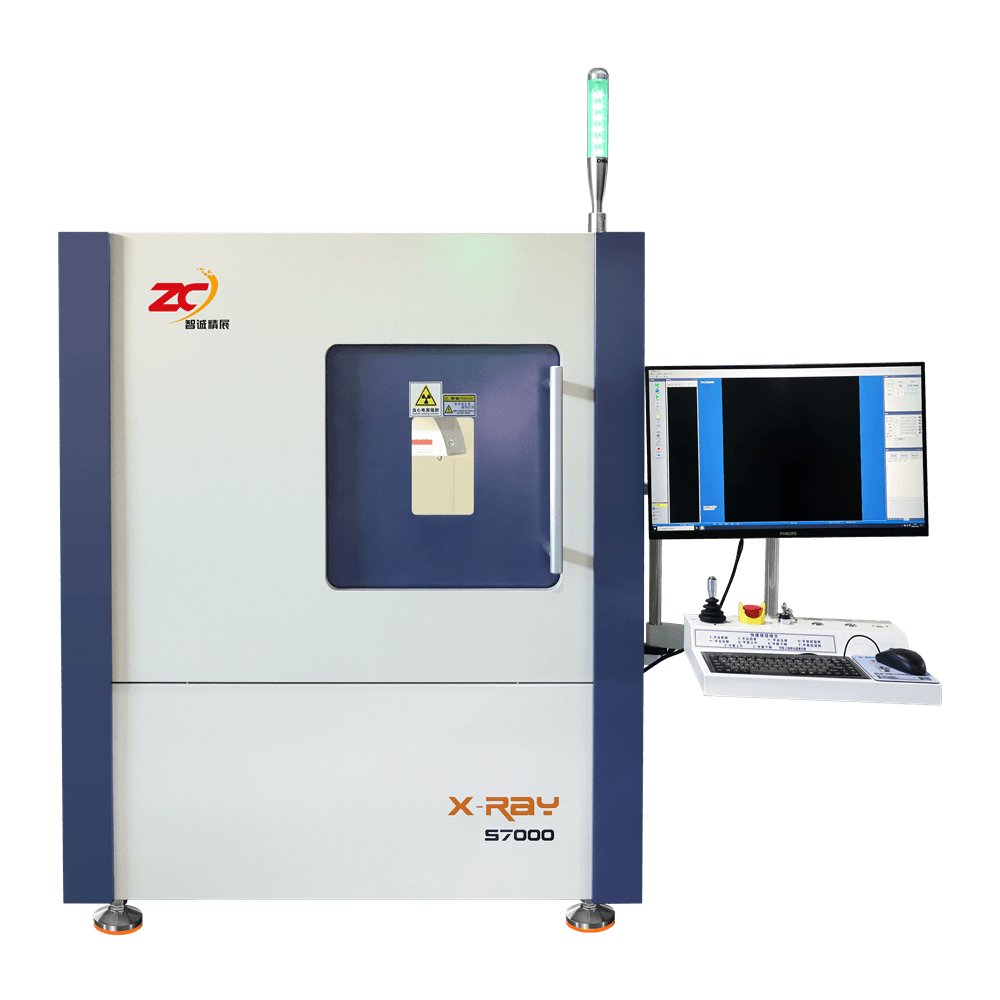

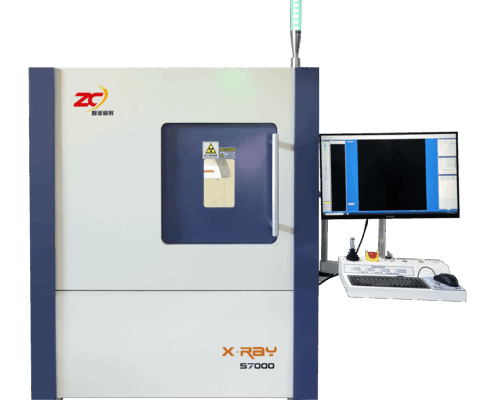

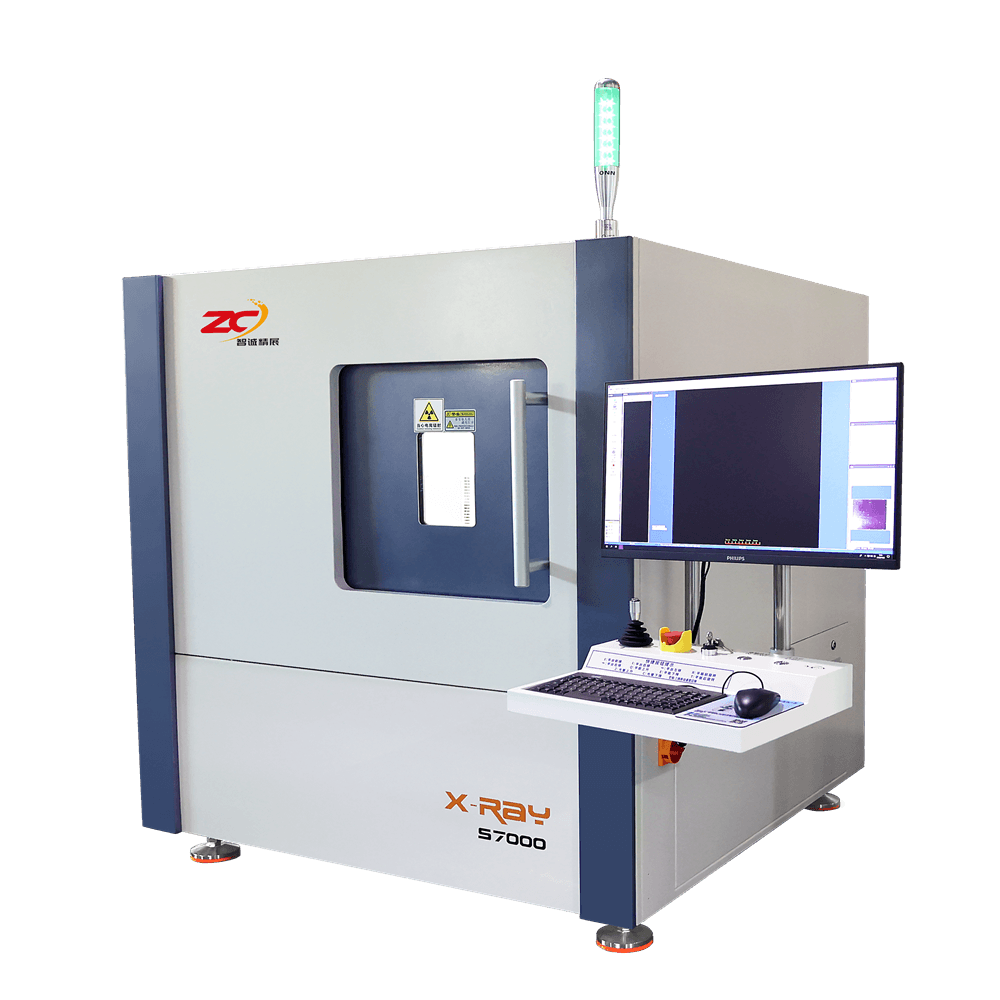

Wisdomshow SMT BGA X-Ray Inspection Machine WDS7000 90KV 5m Focus for CSP BGA QFN LED Voids Detection with Chinese X-ray Tube

The Wisdomshow WDS7000 SMT BGA X-ray inspection machine is designed for precise analysis of electronic components, featuring 90KV power and 5µm focus for high-resolution imaging, enabling accurate detection of voids in CSP, BGA, QFN, and LED assemblies, equipped with a reliable Chinese X-ray tube for stable performance, and delivering consistent inspection results to enhance quality control in SMT production environments.

90KV X-ray power for high precision inspection performance
5µm focus for detailed and high-resolution imaging

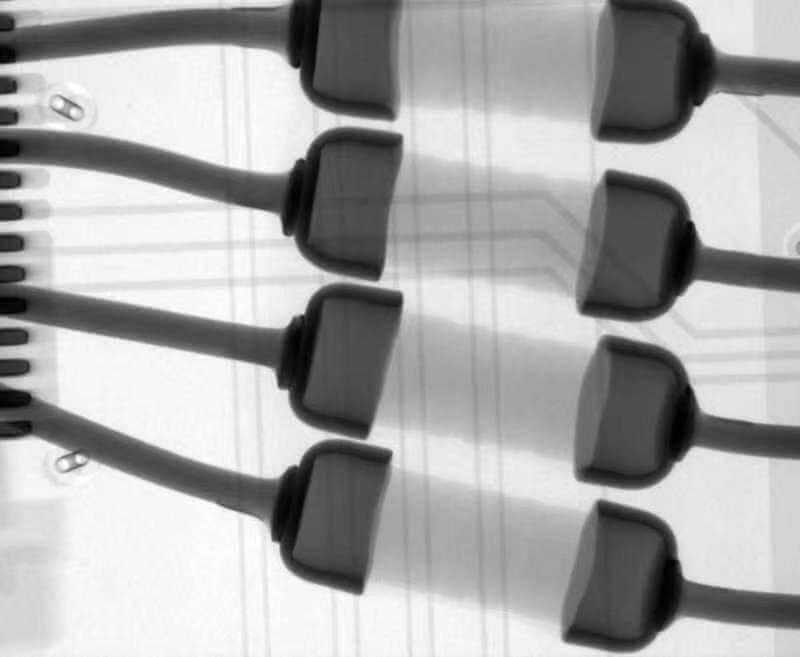

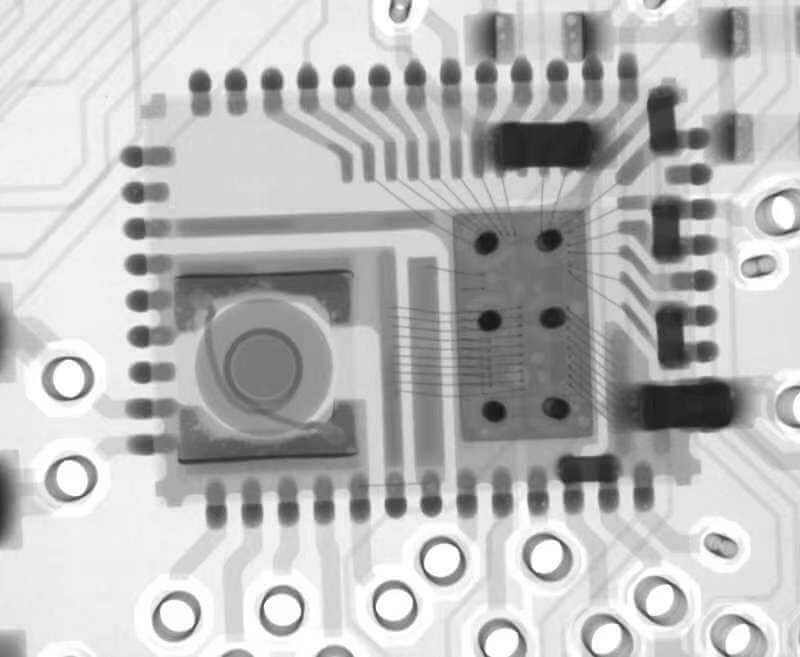

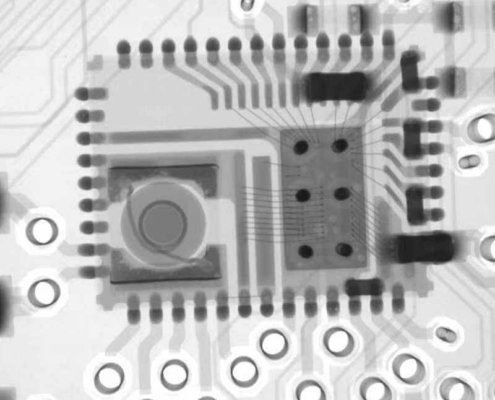

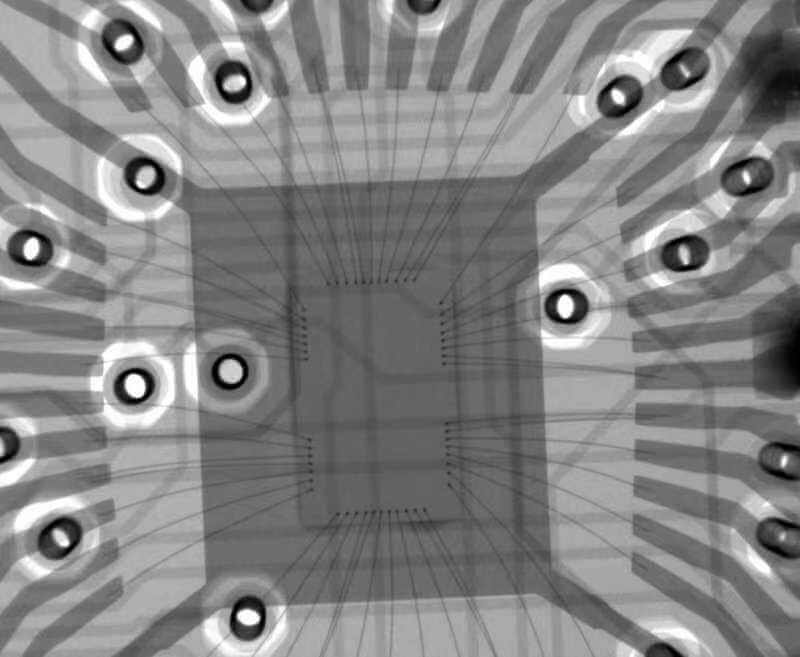

Accurate void detection for CSP, BGA, QFN, and LED components
Reliable Chinese X-ray tube for stable operation
Consistent inspection results for improved quality control
Ideal for SMT production and electronic component analysis

Key Attributes FAQ

Previous Next

Key Attributes

Voltage	220 V	Power (W)	1600W
Machinery Test Report	Provided	Warranty	1 Year
Video Outgoing Inspection	Provided	Weight	1250 kg
Brand Name	WISDOMSHOW	Place of Origin	Guangdong, China
X-ray Tube Type	Closed	X-ray Tube Voltage	90KV
X-ray Tube Focus Size	5μm	Dimension	L1400 × W1400 × H1600 mm
Detectable Size	480 × 420 mm	Detectable PCB Size	500 × 440 mm
Power	1600W

Packaging and Delivery

Selling Units	Single Item	Package Size per Batch	140 × 140 × 160 cm
Gross Weight per Batch	1250.000 kg

How about the package ? Is it safe during the delivery ?

All PCB X-ray inspection machine is packed by standard strong wooden carton. It is safe during shipping.

What is the delivery way ? How many days will the machine arrive us ?

We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive. Or by Air to your airport (Door to Airport Service ), around 3 days to arrive. Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive.

Do you provide the Warranty ? How about the after sales service ?

1 year warranty free for spare parts, Whole life technicial support. We have professional after sales team, if any question, assistant videos are also provided in after-sale service.

If we come to your factory, if you will provide the free training ?

Yes, warmly welcome you to visit our factory, we will arrange the free training for you.

What is the payment way ?

We accept the payment terms: Bank transfer, WesterUnion, Moneygram, etc.

Why Choose us?

1.Professional factory manufacturing bga rework station,best production capability,best quality control,best service.
2.Approved CE,FDA& ISO ,Offer most competitive price.
3.100% QC inspection before shipment.
4.Speedy and high quality customer service and after-sale service possible.
5.Deliver goods to customer all over the world with speed and precision.
6. Powerful teams,meet your requirement and provide the life-time service for u.
