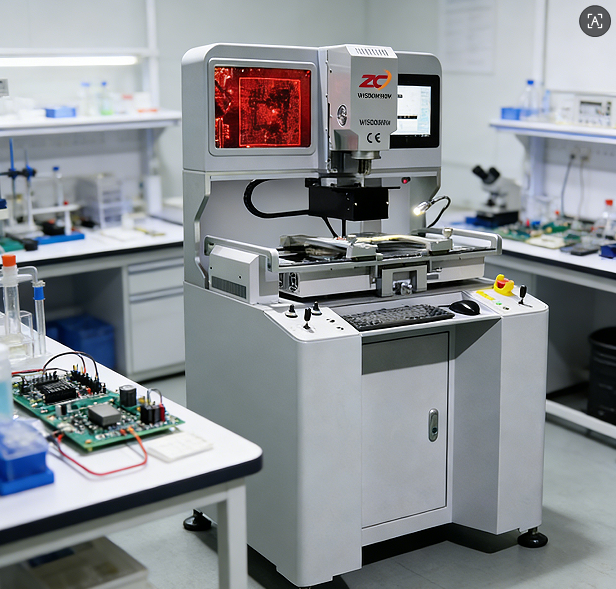

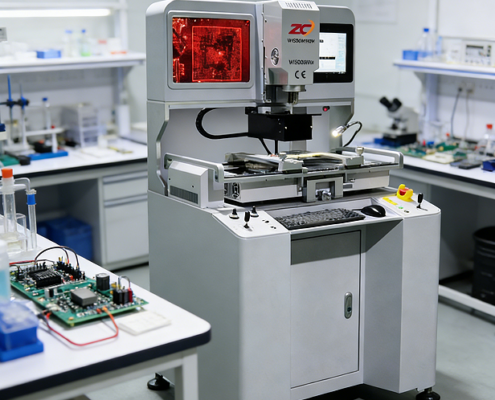

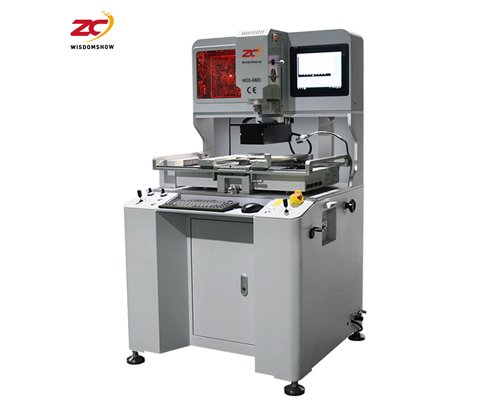

WDS-680D Precision Optical BGA Rework Station

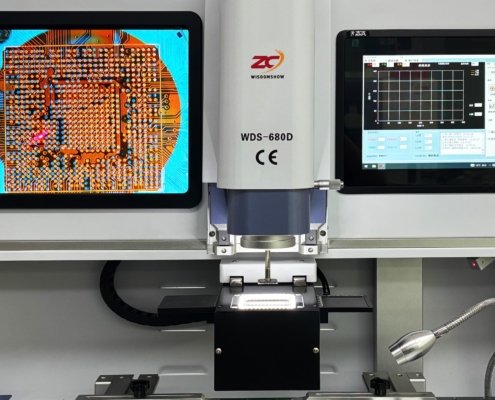

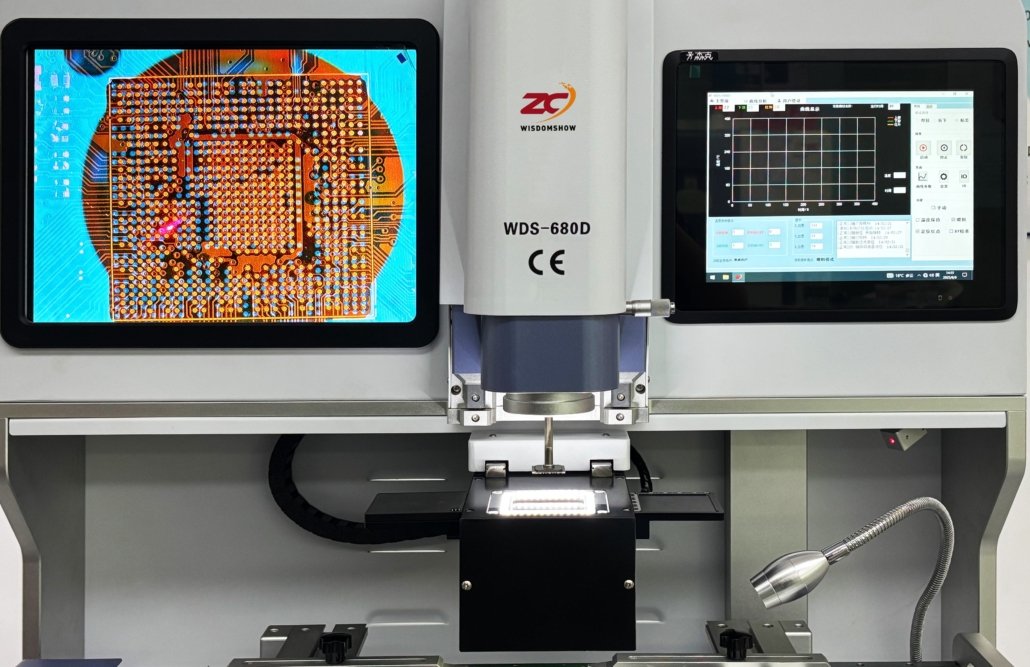

The WDS-680D Precision Optical BGA Rework Station is an advanced rework system designed for high-accuracy removal, placement, and soldering of BGA, QFP, CSP, and other SMD components. It integrates a precision optical alignment system with a high-resolution camera, allowing operators to achieve accurate chip positioning and alignment. The machine uses a combination of hot air and infrared heating technology, ensuring uniform temperature distribution across the PCB, which is essential for lead-free soldering processes and preventing thermal damage to sensitive components.

Equipped with multi-zone temperature control and closed-loop feedback using high-precision thermocouples, the WDS-680D offers stable and reliable heating performance with temperature accuracy up to ±1°C. It features motorized X, Y movement for precise alignment, a vacuum pickup system for safe component handling, and support for a wide range of PCB sizes and chip types. With intelligent software control, real-time temperature monitoring, and automated process capabilities, this rework station significantly improves efficiency, repeatability, and overall repair quality in electronics manufacturing and service environments.
