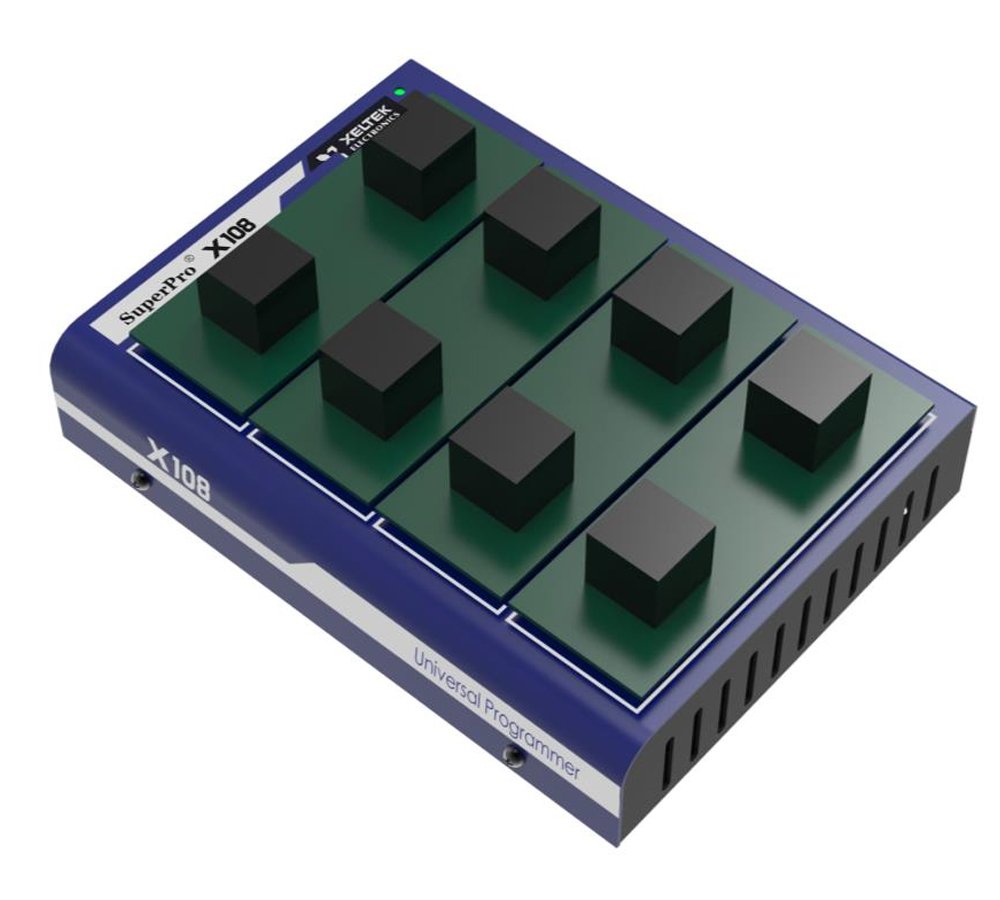

SuperPro X108

Powering Fast Programming

SuperPro X108 is a high-speed universal IC programmer designed for accurate and reliable multi-device programming. It delivers excellent throughput and consistent performance for professional production environments. Its robust architecture ensures stable operation even in demanding high-volume applications.

High-speed universal IC programming
Multi-device support with wide compatibility
Parallel programming for higher throughput
Accurate and reliable programming results
Production-ready design with stable performance

Key Features

Programs & Verify eMMC devices in 30seconds

Programs & Verify NAND FLASH devices in 35seconds

Program 8 eMMC or NAND flash devices simultaneously.

Approved programming algorithms from IC Manufacturers

Advanced and powerful software functions.

Production mode Automatically begins programming operations once chip is inserted in socket.

Project function Set configurations once and save your project requirements for future use. Project file includes data file, configurations, programming operations.

Password Set a protected project file and control production volume

Batch command Combine programming operations like program, verify, security into a single command at any sequence.

Dynamic buffer Allowing you to program each chip with a different data file. Applications including serial number, MAC address etc.

Gang expansion Connect up 12 SPX108 to meet production demands. Manage all units under one GUI as a concurrent production programmer.

JAM/STAPL Player and Direct C Compatible.

Log file and statistic table for quality control

MES and Industrial 4 Compatible Remote communication interface and run-time database available.

Electrical and Mechanical Specifications

PC Interface: USB3.0

GND Banana Jack

Power: AC Adapter input – AC 100v-240v Output – 12V/2A

Main Unit Dimensions: 180 * 132 * 48 mm weight: 0.6 Kg

Package Dimensions: 310 x 250 x 145 mm weight: 1.2 Kg

Temperature: 0-40°C。

Humidity: 20%-80%

Speed Comparison

Speed much higher than SuperPro/7500 for eMMC, NAND FLASH etc.

Device

Capacity

SP7500

P+Vtime（S）

SP/X1

P+V time（S）

Remarks

KLM8G1GEND

1GB

eMMC

K9F1G08U0C

1Gb

NAND FLASH

MX25L12835E

128Mb

SPI FLASH

Warranty Support

Standard Warranty

Included with the purchase of SuperPro 108x

Two-Year Hardware Warranty: Covers hardware repair services for two years from the purchase date.

Device Updates: User-requested device updates are available during the first year of purchase.**

Shipping for RMA Items:

Xeltek covers FedEx Ground shipping for return shipments to domestic (USA) addresses only.
International customers are responsible for shipping costs both ways.

Defect Coverage: Programmers are warranted against manufacturing or workmanship defects for two years from the date of purchase.

Technical Support:

For assistance, contact Xeltek via email sales@hexaabytessystems.com.
Calls are handled in the order they are received. Due to high call volume, written requests are prioritized for faster response.
Support is available Monday–Friday, 8:00 AM to 4:30 PM (PST).

Out-of-Warranty Services: Additional service fees apply for items outside the warranty period.

SuperPro X108

SuperPro X108

8 Socket Production Programmer

Socket adapters sold separately.
