High Throughput SuperBot 2

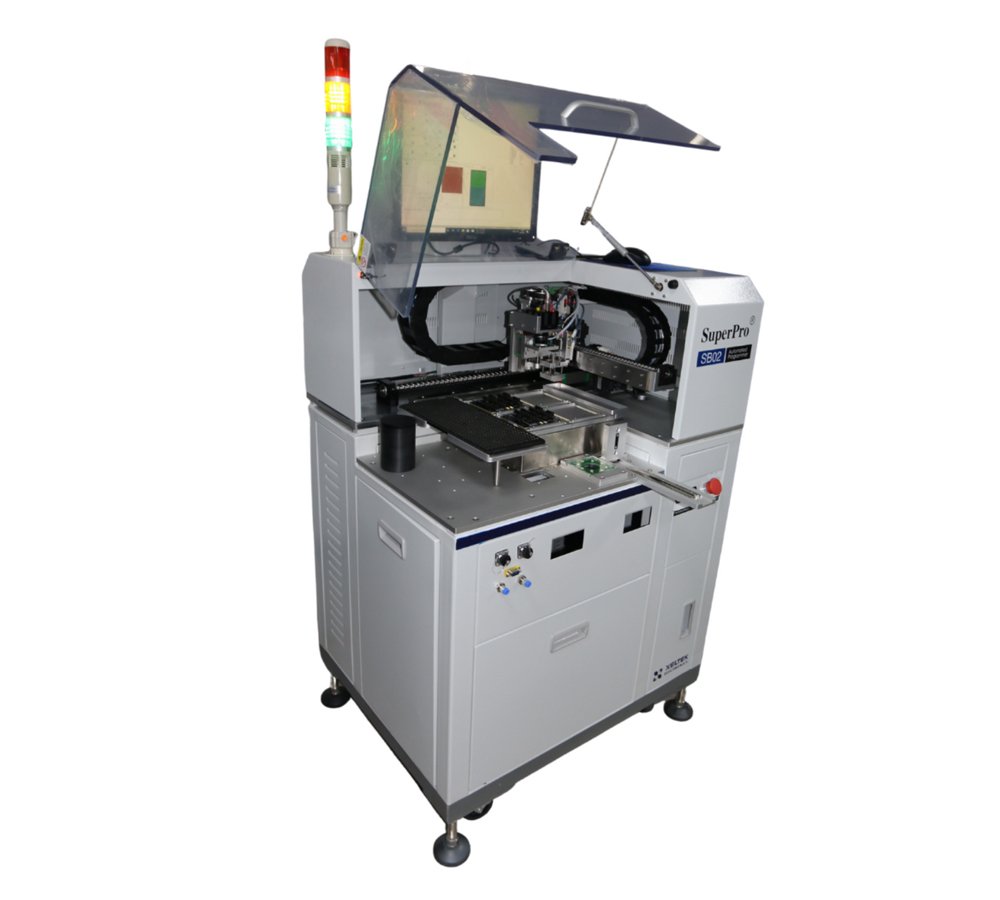

High Throughput SuperBot 2 is based on a high performance servo system that can program up to 1200 UPH (units per hour) (for devices with programming time less than 36 sec) and is suitable for both small and large capacity devices. Throughput is up to 30 times higher than SuperBot 1, especially higher for large capacity devices like eMMC, NAND/NOR FLASH, SPI FLASH. It can be operated 24×7 and can provide throughput of 864,000 UPM (units per month). One person can supervise many SuperBOT machines and once they are programmed, they can usually be left to operate by themselves.
High Performance Programmers
High Performance Programmers SuperBot 2 is equipped with four SuperPro 7500N high speed universal programmers. Depending on the device programmed, each SuperPro 7500N can have up to 4 sockets with a total of up to 16 sockets in the system. Most programmers in the market use technology which is up to 10 years old. The best current hardware technology is to use a high speed MCU chip built inside the programmer. SuperPro 7500N programmers employ a very high-speed MCU chip producing not only reliable programming algorithms but also increasing programming speed. Utilization of ARM11 32bit MCU combined with an internal Linux operating system makes them the most advanced and versatile programmers in the industry.
LAN Operation
LAN Operation Most volume programming applications need programmers to be operated remotely and this can be achieved by on SuperBOT programmers. Programmers can be connected to a local network and be remotely controlled by any computer on the network via LAN (100M) port. LAN port enables remote project loading, quality monitoring, volume control, file security. Technical department can remote control programming operations and processes, including downloading project file, command execution, project settings, and obtain real time information to achieve production goals. Remote network management provides the most protection for intellectual property. Project data and files are never shared with operators because files are remotely loaded by authorized engineers.
The Most Durable and Reliable Systems in the Industry
China is the hub of the world Electronics manufacturing and Xeltek automated programmers are widely installed at most major Electronic manufacturing plants with multiple installations at many locations. Most companies run production 24 hours/day and 7 days/week programming millions of devices per year. Xeltek automated programmers have been refined to run non-stop, withstand harsh and battle-ground like environment.
Largest Device Support
Largest Device Support Located in Silicon Valley, we keep good relationships with many major IC companies that are important for us to continuously support new devices. Xeltek currently supports more than 100,000 devices, which is the largest device library in the programming industry. can be added within a week – average lead time from other manufacturers is over two months.
Better Yield
Our semiconductor manufacturer approved algorithms, precision and clean signals guarantee high programming yield. Algorithms are performed with state machine architecture constructed with FPGA to achieve an ultrahigh programming speed. Along with the lo w voltage components selection, they program devices down to 1.2 volts.
Lowest Cost Automated Programming System in Market
SuperBot automated programmers are the most affordable and high value systems in the industry. High volume and extensive production experience enables the programmers to be the most competitive in terms of quality, price, and value in the programming industry.
Powerful and Intelligent Software

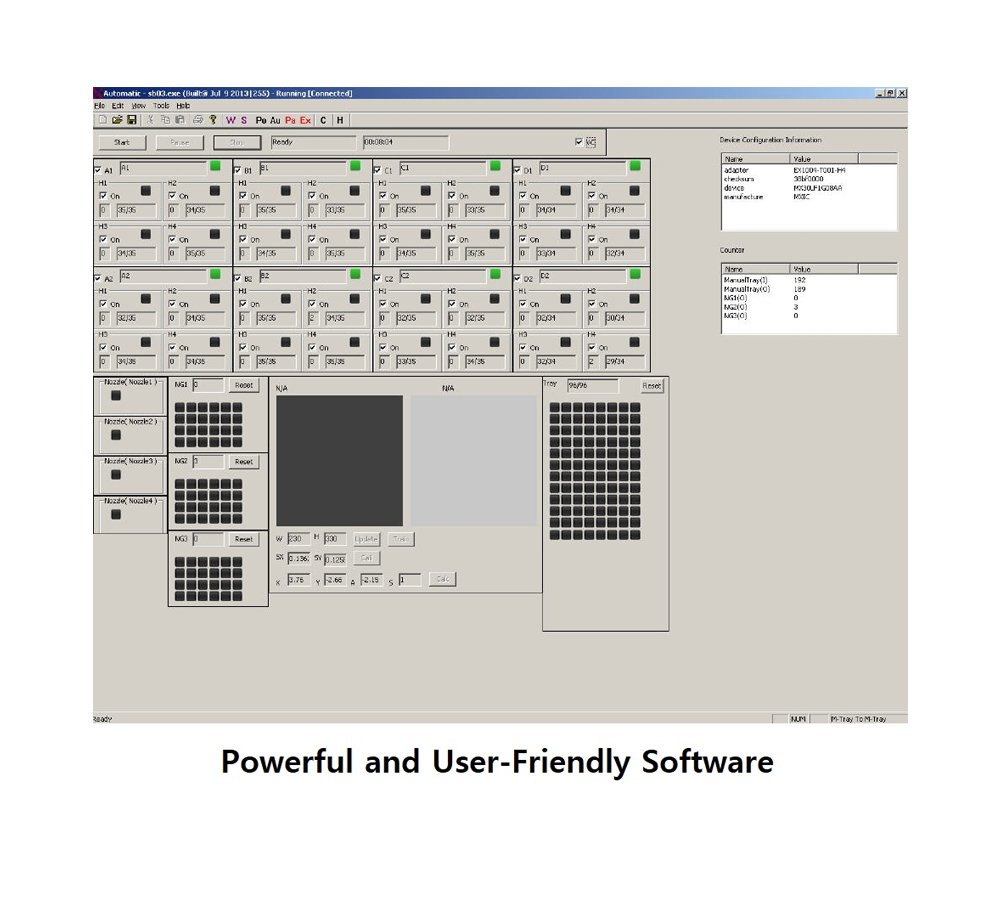

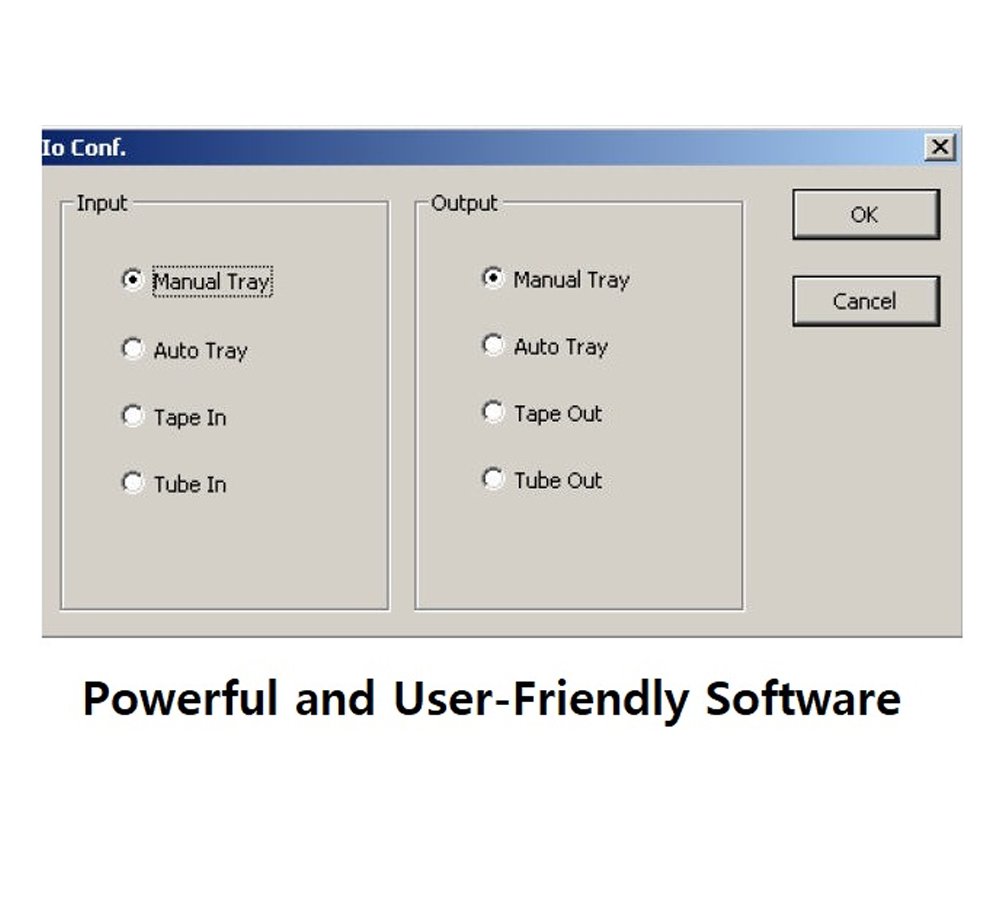

User-friendly software with graphical interface cuts learning curve. Setup data saved for next operation. Software also includes resourceful log table, convenient production and quality tracking, authorization, flexible stopping strategy for bad socket or module.
Chip Size
Devices between 2x2mm to 30x30mm can be programmed. SuperBot 2 supports the SOT23 package which measures only 2x3mm. We do not know of any other manufacturer who supports such a small package type and this is a testimony that SuperBot 2 excels in its accuracy and precision.
Short change-over time

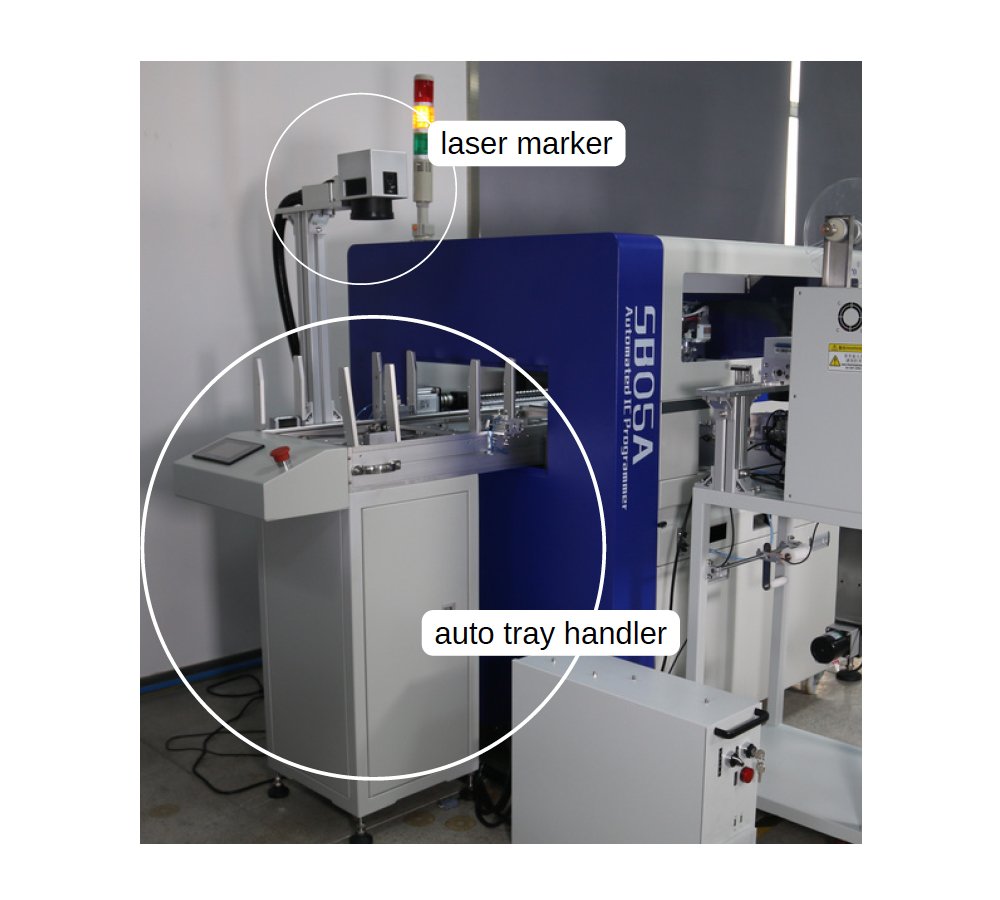

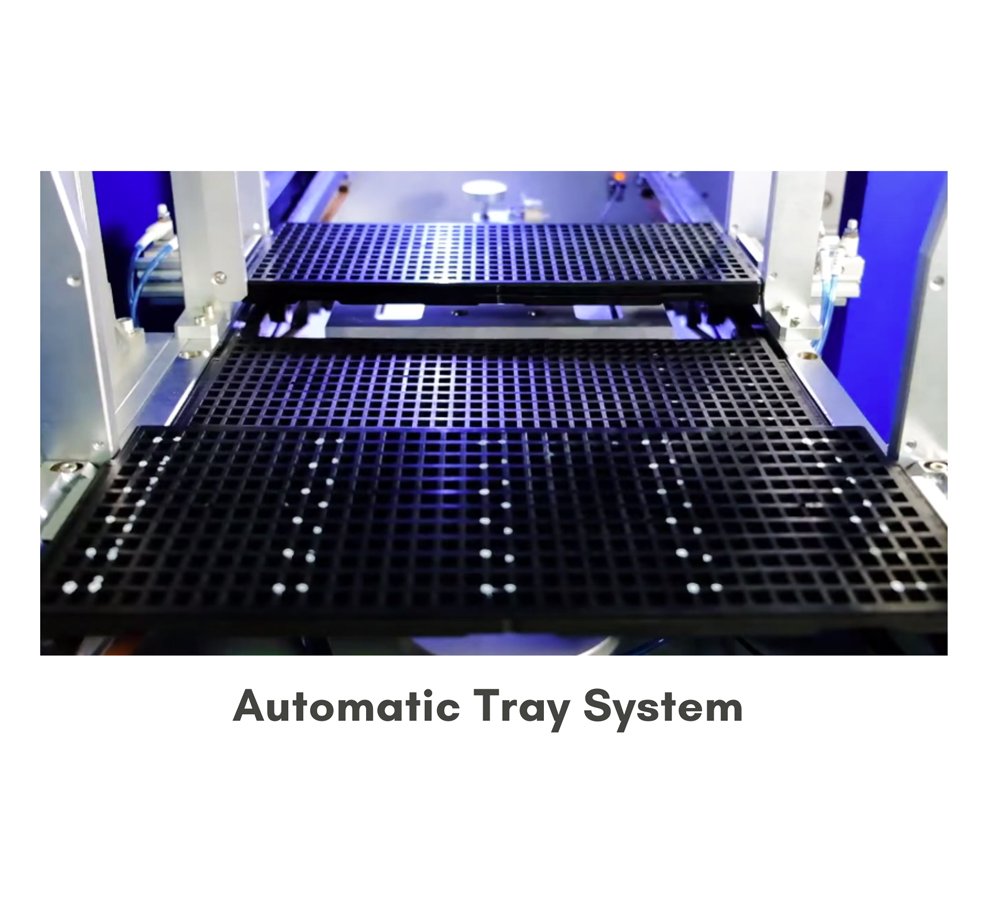

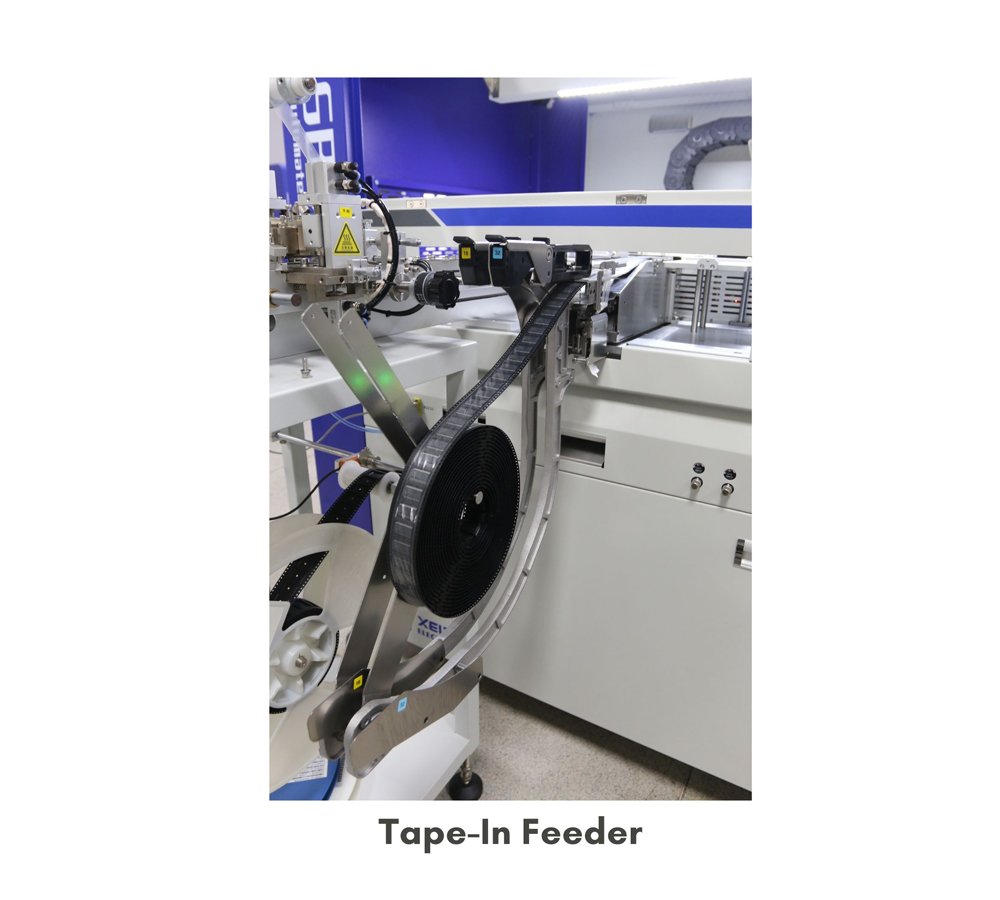

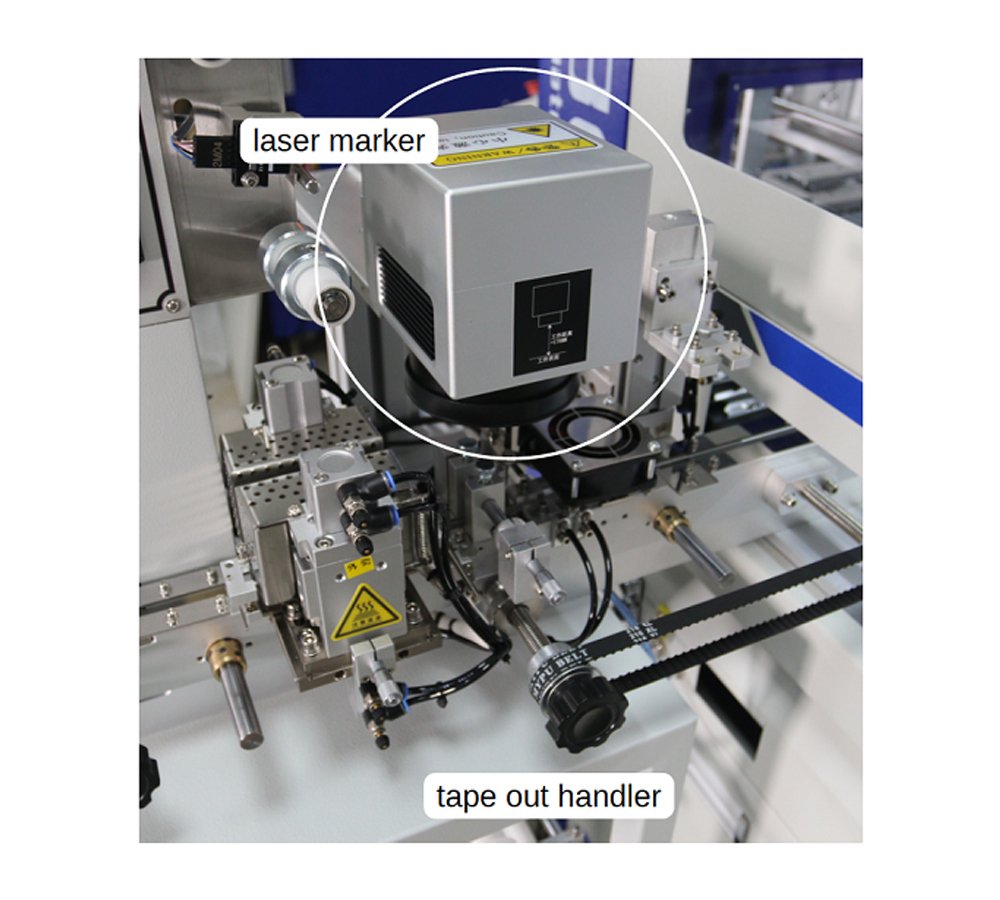

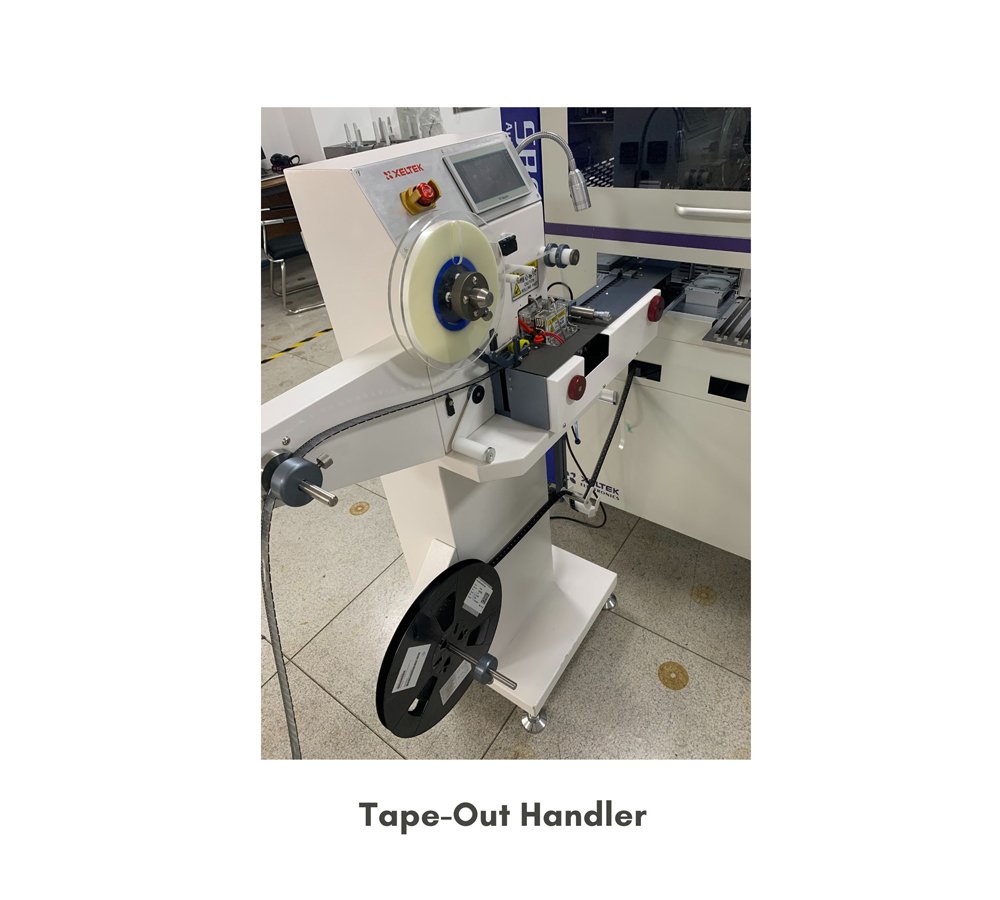

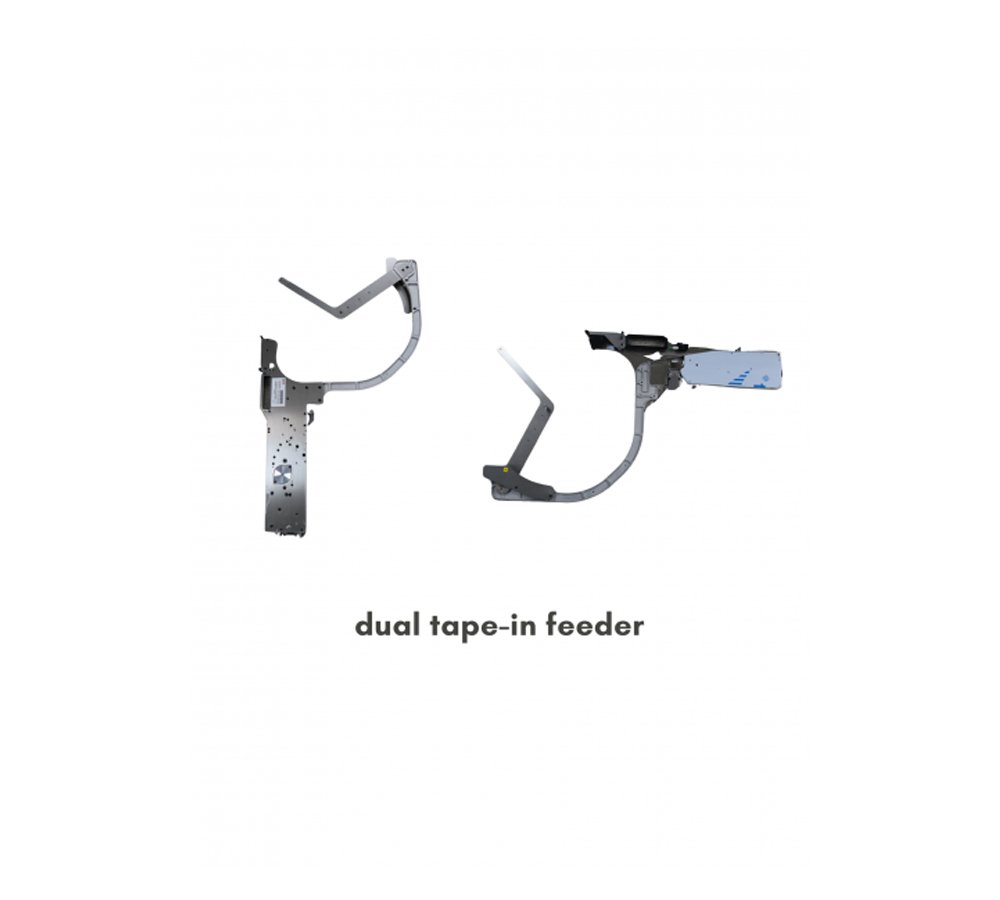

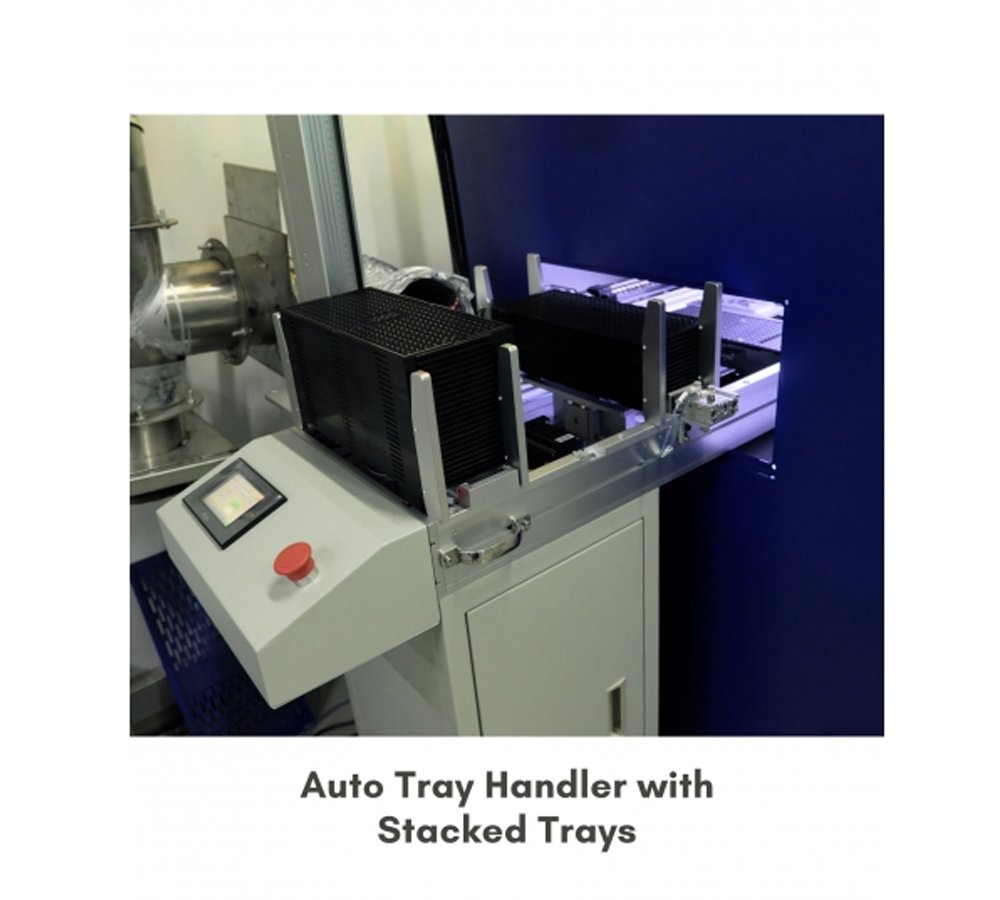

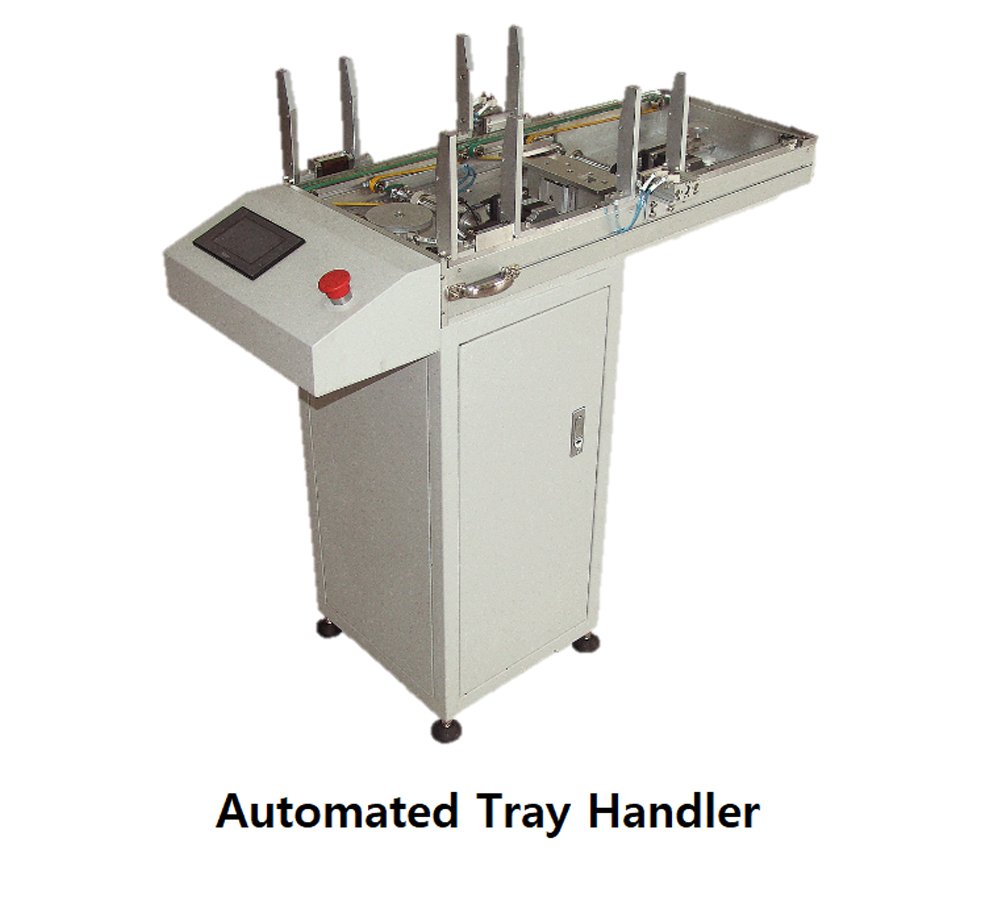

I/O devices and socket adapters are easily interchangeable and socket positioning can be performed automatically. Auto Tray and Tape-out can be permanently attached to SuperBot eliminating changeover time when moving from tape-out to auto tray. Tape-in feeder changeover time is below 10 minutes and laser marker changeover time between tray to tape is under 15 minutes.
Socket Cost and Investment
Cost recovery in short period with low investment in the beginning as socket adapters are universal for up to 144 pin chips. For most of competitor programmers, user has to invest on device specific socket adapters for chips greater than 48 pins thus increasing cost in long term.
Technical Support
More than 30 engineers are devoted to developing new programmers, socket adapters and device algorithms. Engineers are fluent in English and provide excellent direct support through emails, telephone, live chat an online ticketing system. With our locations in the United Stated and China, providing 17 hours of continuous support worldwide daily, we are confident to be able to provide support anywhere in the world.
