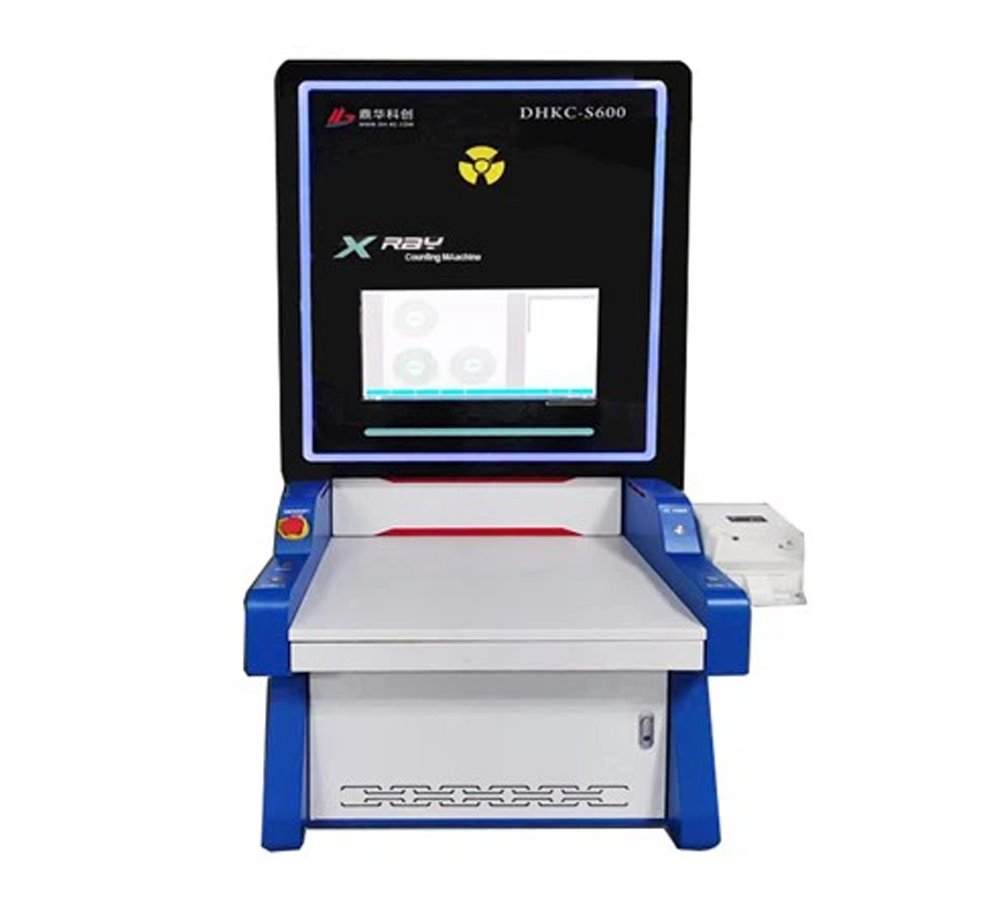

SMD Reel Counters Xray

Count Reels Without Opening

SMD Reel Counters X-ray

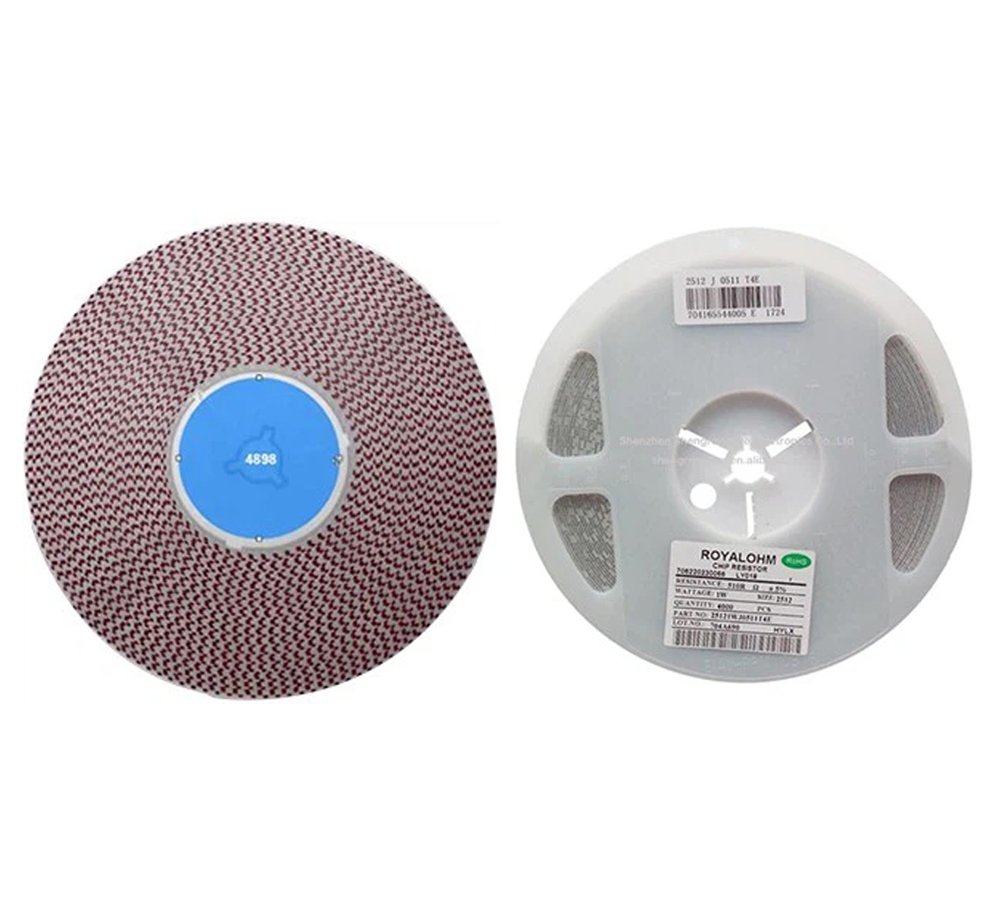

SMD reel counters are used to count and organize surface-mount components on a reel. These components are often too small and delicate to be counted manually, so SMD reel counters provide a quick and accurate way to inventory and organize them. They help to prevent mistakes and increase efficiency in the manufacturing process.

Non-destructive X-ray counting of SMD components in sealed reels
High-resolution imaging for precise and reliable component detection
Fast automatic counting to improve inventory efficiency
Supports multiple reel sizes and component types
Reduces manual errors and material handling time

Products Features Product Specification Products Principle Products Applications

Previous Next

SMD reel counters and X-ray machines are two essential tools in the electronics industry. They help ensure the quality and reliability of electronic components.

X-ray machines are used to inspect electronic components and assemblies. They are especially useful for examining complex assemblies where visual inspection is difficult. X-ray machines can also identify defects in materials, such as cracks, voids, or faulty solder joints.

Both SMD reel counters and X-ray machines contribute to improving the quality and reliability of electronic components. They are key tools in ensuring that electronics have a long and trouble-free life cycle. As the technology behind these tools continues to advance, manufacturers are able to produce higher-quality components with greater consistency.

In conclusion, SMD reel counters and X-ray machines are vital in the electronics industry. They help improve efficiency, reduce errors, and ensure component quality and reliability. These tools have played a significant role in the advancement of electronic technology over the past several decades and will continue to evolve in the future.

Power supply	AC110~220V 10A +/-10%	Rated power	1.7KW
Inspection mode	off-line	Authority management	password
Door-opened	Manual+system induction	Loading way	Human-being
Light tube type	sealed type	Light tube voltage	50~90KV
Light tube current	200ɥA	focal spot size	5um
Geometry magnification	200 times	cooling-down method	Forced air cooling
Material tray size	7″-17″tray	Material tray thickness	≤88mm
Radiation tolerance	10000Gy	Protection level	lP65
Counting speed	7″,about 6-8s/4 reel	Load table size	400×400mm/10KG

SMD reel counter X-ray principle is a modern and innovative technology used to count components in Surface Mount Device (SMD) reels. This technology has revolutionized the electronics industry by making component counting faster and more accurate.

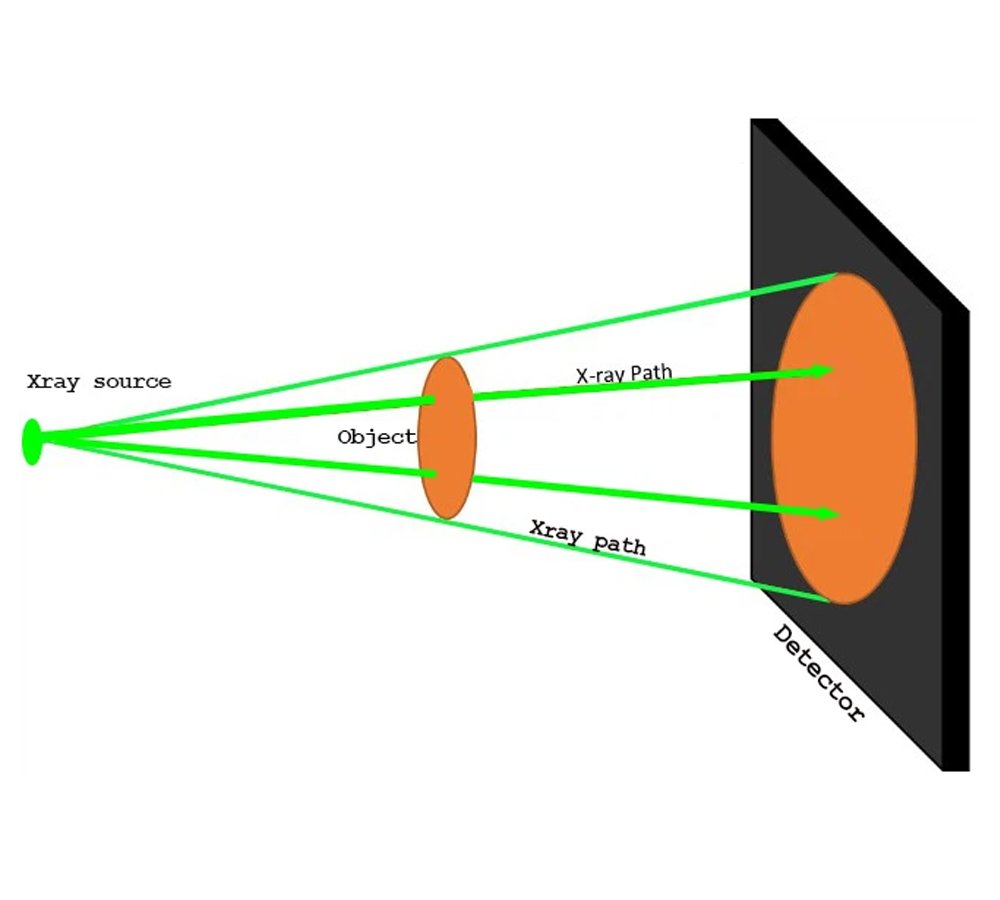

The principle behind the SMD reel counter X-ray is based on the use of X-rays. The reel is placed inside the machine, where X-rays pass through it. A detector then measures and calculates the number of components within the reel.
One of the key advantages of this technology is that it is non-destructive-it does not damage the components in any way. In addition, it is fast and precise, leading to increased productivity and efficiency in the electronics industry.
Overall, the SMD reel counter X-ray principle is an exciting advancement that enhances the efficiency and accuracy of electronics manufacturing. It reflects the innovative spirit of the industry and is likely to contribute to many more breakthroughs in the future.

The X-ray component counter application is a cutting-edge technology that has revolutionized the way components are counted using X-rays. This advanced tool enables technicians to accurately and efficiently count large quantities of components, streamlining the manufacturing process and improving overall efficiency.

It is easy to use and highly effective, making it an ideal solution for companies aiming to enhance productivity and reduce costs. With this tool, technicians can quickly identify the type of component and count the required quantity with precision.

This application is a prime example of how technological advancements continue to transform the manufacturing industry. By embracing new technologies, companies can remain competitive and innovative in today’s fast-paced business environment.

Moreover, the benefits extend beyond improving efficiency. It also minimizes the risk of errors, which can impact the quality and safety of the final product. Additionally, it helps companies comply with strict regulations and standards, ensuring their products meet or exceed customer expectations.
