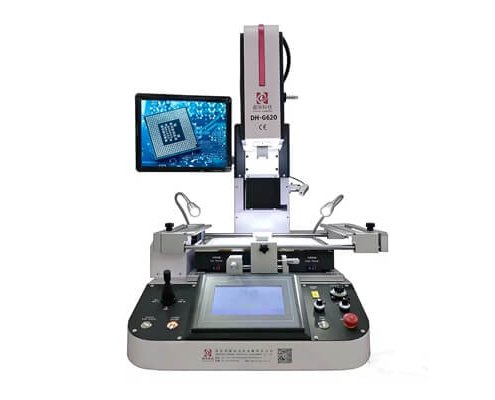

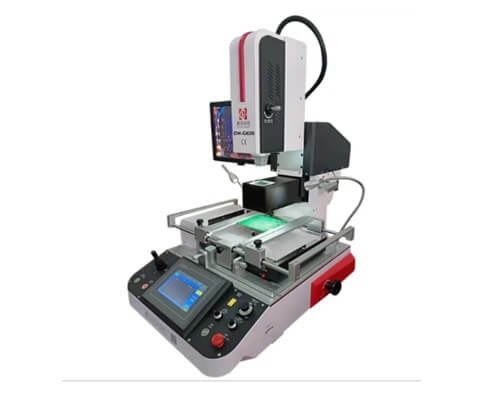

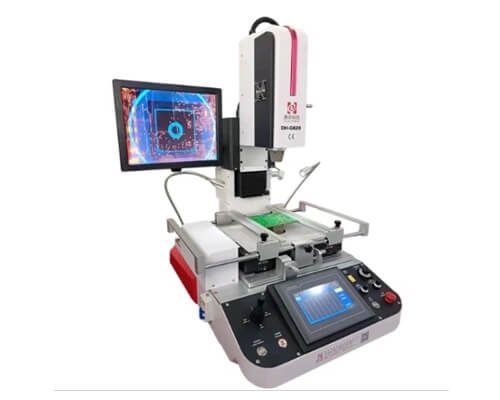

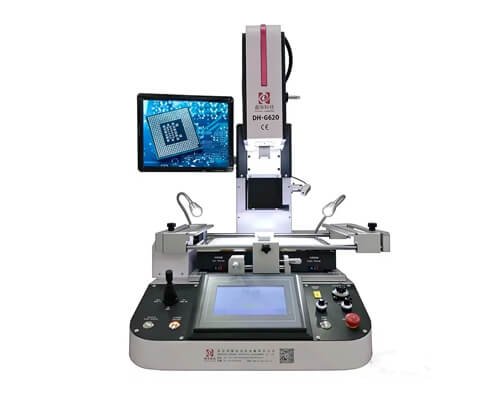

Core Features & Selling Points
1.Intuitive Touchscreen InterfaceThe high-definition touchscreen lets you set heating temperature, time, slope, cooling, and vacuum parameters with a few taps. It displays real-time temperature curves (set vs. measured) and offers instant curve analysis, so you can fine-tune your process on the fly.
2.Tri-Zone Independent HeatingThree independent heating zones (top, bottom, and preheat) each support 8-stage temperature control, powered by individual PID algorithms. This ensures uniform heating across the PCB, preventing warping and delivering optimal soldering results for every zone. The large preheating area keeps your PCB stable throughout the process.
3.Unlimited Profile Storage & Multilingual SupportStore up to 9999 temperature profiles for quick recall with different BGA chips. Edit and analyze curves directly on the touchscreen, and switch between English and Chinese interfaces seamlessly-perfect for global users.
4.Precision Temperature ControlA high-accuracy K-type thermocouple closed-loop system maintains temperature within ±2℃, with an external temperature port for calibration and curve verification. This level of precision is critical for delicate iphone repair machine tasks and sensitive SMD components.
5.Secure & Versatile PositioningThe V-slot PCBA holder with laser positioning ensures fast, accurate alignment, while a movable universal fixture protects your PCB from scratches and warping. It accommodates PCBs of all sizes, making this smd desoldering station adaptable to any job.
6.HD Optical Alignment SystemThe high-definition CCD camera system features light splitting, zoom, autofocus, automatic color difference detection, and brightness adjustment, achieving a positioning accuracy of ±0.01mm. This guarantees perfect alignment for even the smallest BGA chips.
6.Integrated Heating & PlacementThe top heating and placement head is motor-driven for one-touch operation. Equipped with a high-sensitivity pressure sensor, it prevents damage to the PCB or machine in case of anomalies, ensuring safe, worry-free operation.
7.Integrated Heating & PlacementThe top heating and placement head is motor-driven for one-touch operation. Equipped with a high-sensitivity pressure sensor, it prevents damage to the PCB or machine in case of anomalies, ensuring safe, worry-free operation.
8.Dual-Level Security ProtectionDual password protection prevents unauthorized changes to programs and parameters, while a voice “advance alert” sounds 5–10 seconds before the completion of desoldering or soldering, giving you time to prepare. The machine also features CE certification, an emergency stop button, and automatic power cut-off in case of temperature runaway.
9.360° Adjustable Air NozzleThe included full-air nozzle can be rotated 360° for flexible positioning, and is easy to install or replace.
10.Automatic Cooling SystemAfter heating stops, a high-power fan activates to cool the PCB to room temperature, preventing warping and extending the machine’s lifespan by avoiding thermal aging.
11.Built-In Vacuum PumpNo external gas source is required-simply plug in the power cord and start working, making this automatic ic chip bga repair machine usable anywhere.
