S7200 X-Ray Inspection Equipment

BGA Void Detection

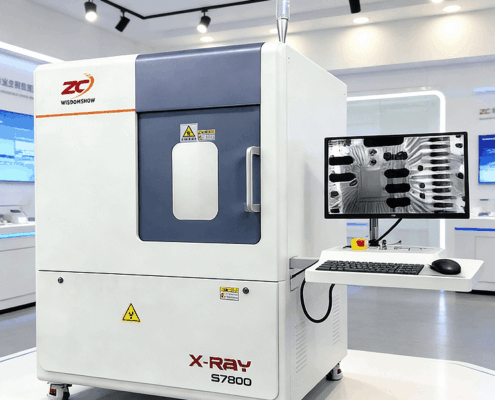

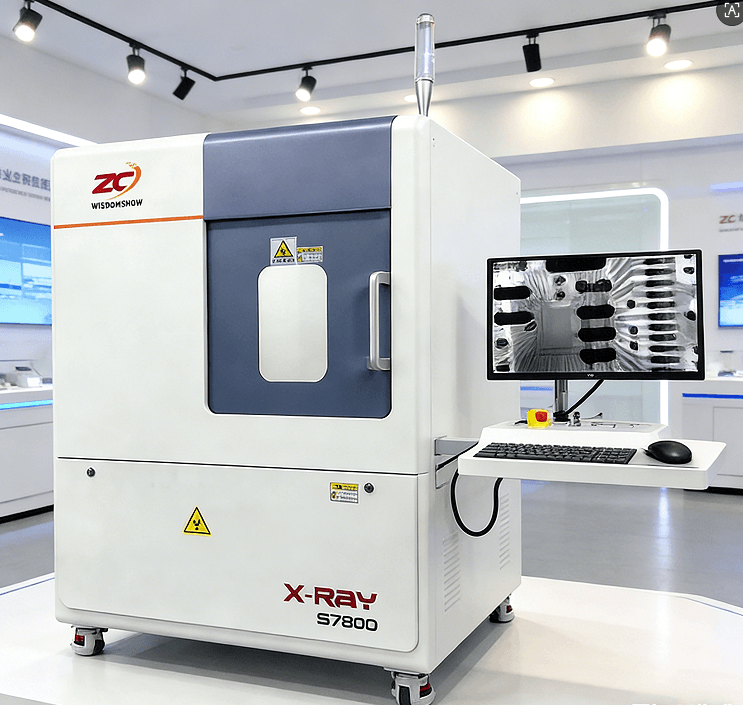

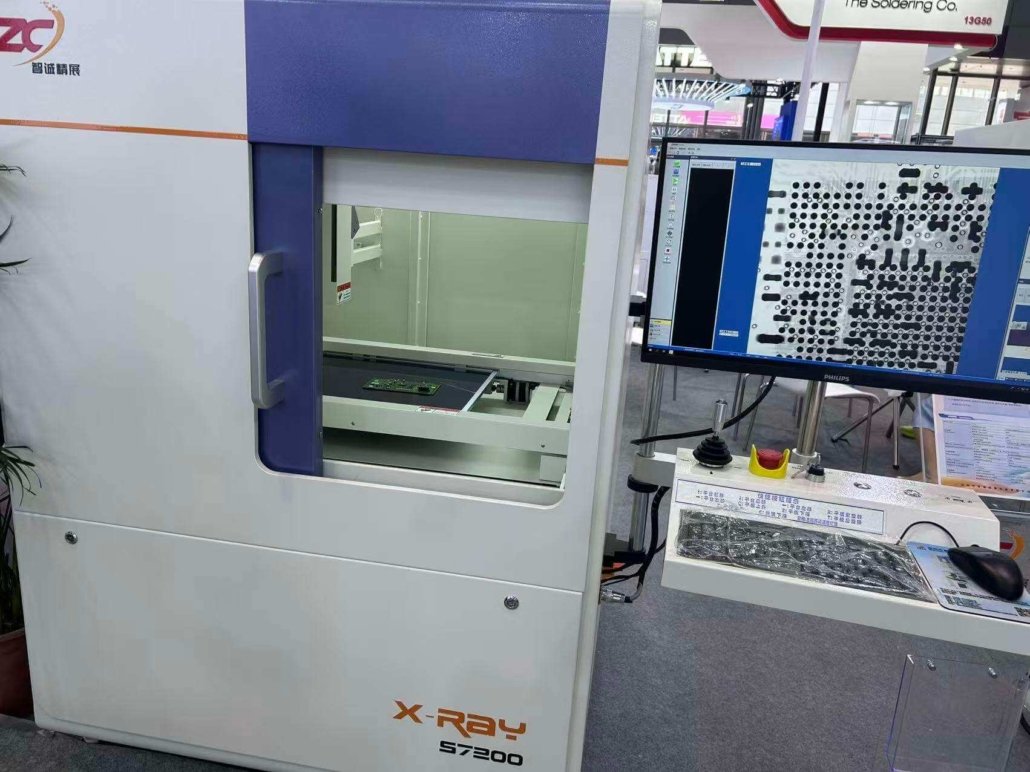

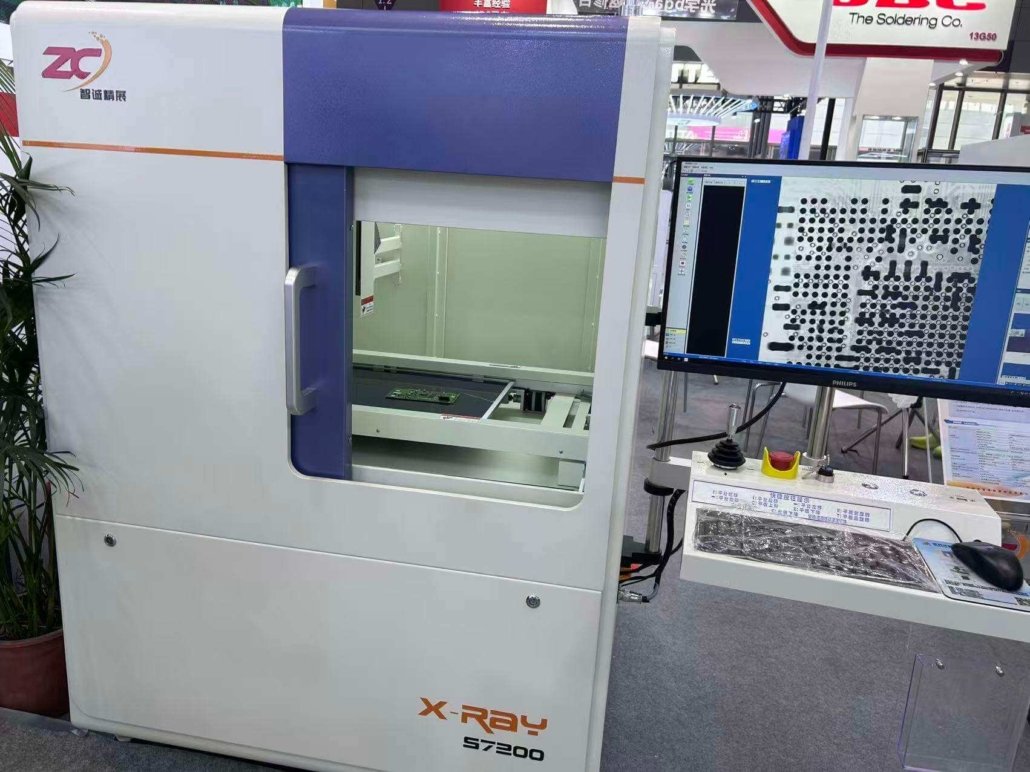

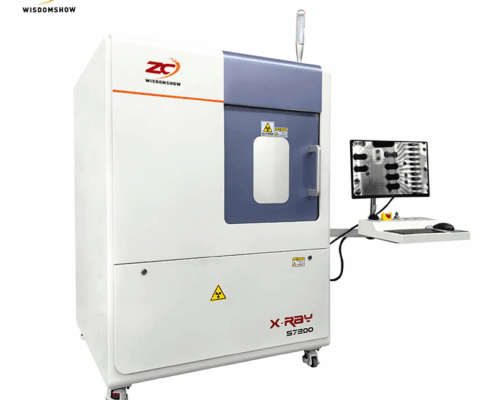

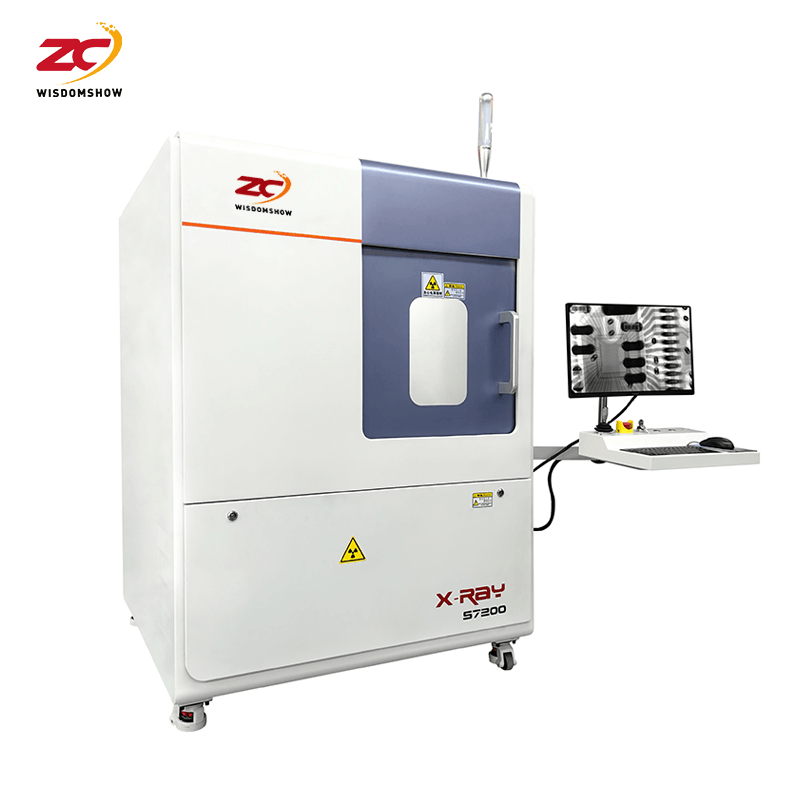

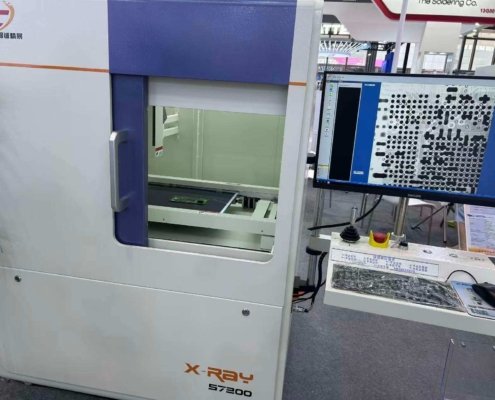

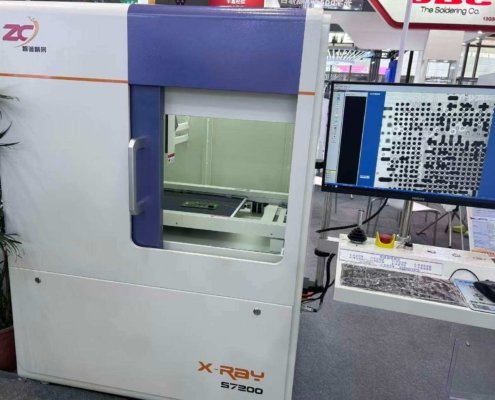

S7200 X-Ray Inspection Equipment Competitive with Seamark X6600 for BGA Void Detection Or PCB SMT Defects NDT

The S7200 X-Ray Inspection Equipment is a competitive alternative to Seamark X6600 for precise BGA void detection and PCB SMT defect inspection. It provides reliable non-destructive testing (NDT) for advanced electronic assemblies used in modern manufacturing. The system accurately detects voids, cracks, and soldering defects with high-resolution imaging technology. It is designed for industrial SMT environments, ensuring efficient and consistent quality control processes. With stable performance and strong X-ray penetration capability, it delivers dependable inspection results for semiconductor and PCB applications.

The S7200 X-Ray Inspection Equipment competes with Seamark X6600 for PCB inspection.
It provides reliable non-destructive testing for advanced electronic assembly manufacturing applications.
The system detects voids, cracks, and solder defects using high-resolution imaging technology.
It is designed for SMT production environments ensuring consistent quality control performance.
The machine delivers stable operation with strong X-ray penetration for complex PCBs.
It ensures dependable inspection results improving semiconductor and electronics manufacturing reliability.

Key Attributes Description FAQ Video

Previous Next

Key Attributes

Voltage	220 V, 110 V	Power (W)	10 kW
Core Components	PLC	Machinery Test Report	Provided
Warranty	1 Year	Video Outgoing Inspection	Provided
Weight (kg)	1360 kg	Brand Name	Wisdomshow
Place of Origin	Guangdong, China	Product Name	S-7200
Function	Electronic Manufacturing / Semiconductor / BGA / FPA	Keyword	High-definition Micro focal spot tube
Feature	High Efficiency Automatic Welding Robot	Model	S-7200 X-Ray Detection Equipment
Power	1600 W	Brand	WISDOMSHOW
Power Supply	110–220 V	Control	Automatic X-Ray Detection Equipment
Size	1500 × 1300 × 1800 mm

Packaging and Delivery

Selling Units	Single item
Package Size per Batch	60 × 58 × 65 cm
Gross Weight per Batch	60.000 kg

Micro-focus Spot Size: Detects tiny defects as small as 5 um for precise quality control.
High Resolution Detectors: Utilizes CMOS digital flat panel images for detailed inspections.
Flexible Inspection Stages: Offers 22 x 18 inches stage with 350° rotation for versatile viewing angles.
Advanced Software Tools: Includes BGA void detection and automatic calculations for efficient analysis.
Industrial Grade: Equipped with an industrial PC and 2.4 inches LCD for robust performance.

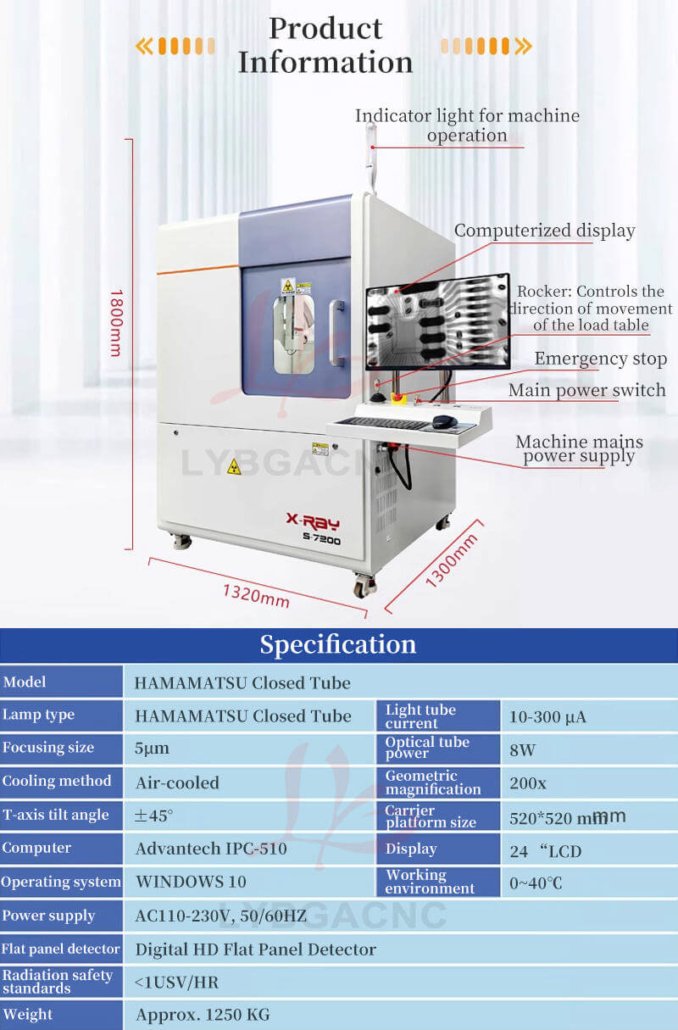

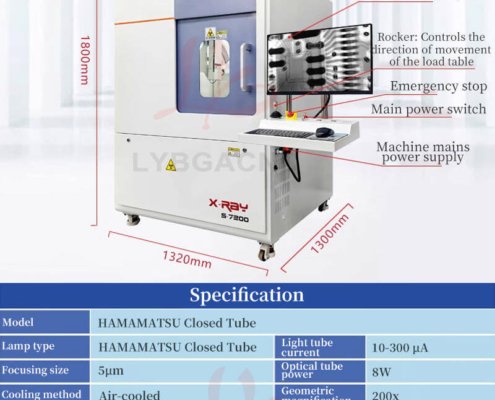

Feature / Category		Specification
Machine Parameters	Weight	~1250 kg
	Power Supply	220 V / 50 Hz
	Max Power	2.0 kW (2000 W)
	Equipment Dimensions	1300mm(L) * 1320mm(W) * 1800mm(H)
	Radiation Leakage Dose	<1μSv/h
X-Ray Safety	Radiation Leakage Dose: <1μSv/h Casing material: Steel-lead-steel structure with leaded glass windows. Safety interlock: Limit switches at all doors; automatic power cut-off if opened. Status indicators: Lights indicate operational status of the X-ray source. Certification: Obtained “Exemption Filing for Radioisotopes and Radiation Devices”.
	Location Editing	Easily achieve multi-point position detection

Classification	Item	Type	Parameters and Functions
Hardware Configuration	X-Ray Source	Brand Type	HAMAMATSU (Japan) Closed Microfocus X-ray Source
		Voltage Current	90 kV, 10-200 uA
		Focus Size	5 μm
		Max Power	8 W
	Imaging Unit	Brand Type	iRAY Amorphous Silicon Flat Panel Detector
		Imaging Area	130 mm × 130 mm
		Photosensitive Unit Size	85 μm
		Pixel Matrix	1536 × 1536
		Resolution	5.8 Lp/mm
		Tilt Angle	0-90° viewing angle (45° to the left and right)
		Image Frame Rate	20 fps
		Magnification Ratio	Geometric Magnification 150X
	Computer	Host Brand	Advantech Industrial Computer
		Industrial Computer Configuration	CPU: I5 6500, RAM: 8G, HDD: 1TB
		Monitor	24″ HD Monitor
	Loading Platform	Loading Area	520 mm × 520 mm
		Maxi Inspection Area	520 mm × 520 mm
		Motion Travel (Z-axis)	Detection Panel Z1=300 mm X-ray Source Z2=300 mm
		Motion Travel (X-axis)	X axis=510 mm, Y axis=405 mm
		Max Sample Weight	10 kg
	Movement Control Method	Joystick, Mouse and Keyboard Tri-combination
Navigation System	Configuration	Hikvision HD Camera
Software System	Software Introduction	Intellectual Property	Self-developed with independent intellectual property rights (IPR) in software
	Software Functions	Automatic Image Setting	Recording position coordinates and parameter information of characteristic points
		Automatic Navigation Functionality	Facilitate quick movement to inspection points
		Calculation Feature	Capable of measuring bubbles in electronic or semiconductor products
		Algorithm Model	Customizable detection algorithm models based on requirements

How about the package ? Is it safe during the delivery ?

All PCB X-ray inspection machine is packed by standard strong wooden carton. It is safe during shipping.

What is the delivery way ? How many days will the machine arrive us ?

We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive. Or by Air to your airport (Door to Airport Service ), around 3 days to arrive. Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive.

Do you provide the Warranty ? How about the after sales service ?

1 year warranty free for spare parts, Whole life technicial support. We have professional after sales team, if any question, assistant videos are also provided in after-sale service.

If we come to your factory, if you will provide the free training ?

Yes, warmly welcome you to visit our factory, we will arrange the free training for you.

What is the payment way ?

We accept the payment terms: Bank transfer, WesterUnion, Moneygram, etc.

Why Choose us?

1.Professional factory manufacturing bga rework station,best production capability,best quality control,best service.
2.Approved CE,FDA& ISO ,Offer most competitive price.
3.100% QC inspection before shipment.
4.Speedy and high quality customer service and after-sale service possible.
5.Deliver goods to customer all over the world with speed and precision.
6. Powerful teams,meet your requirement and provide the life-time service for u.
