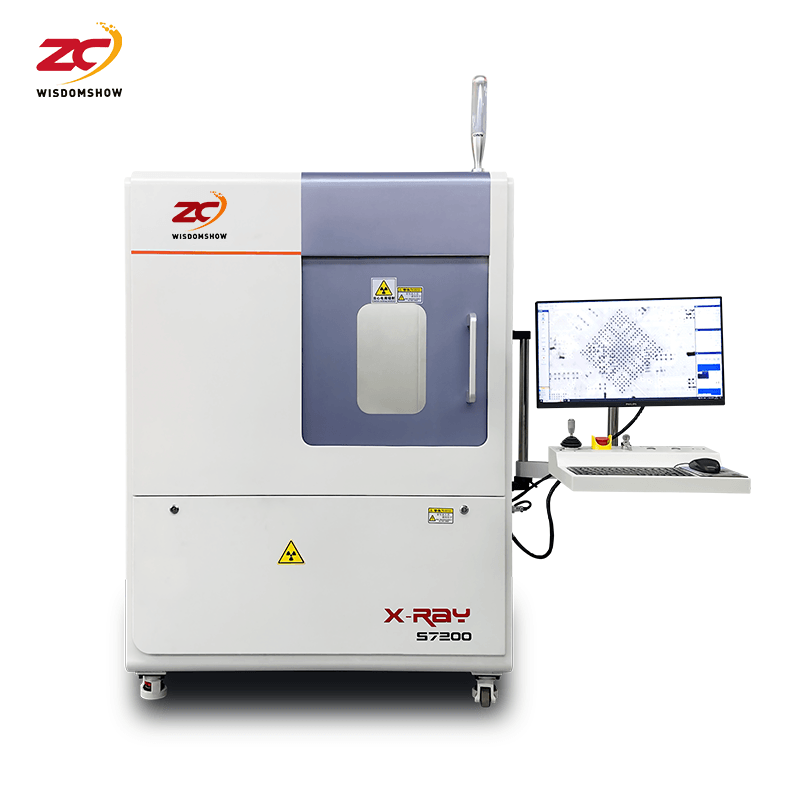

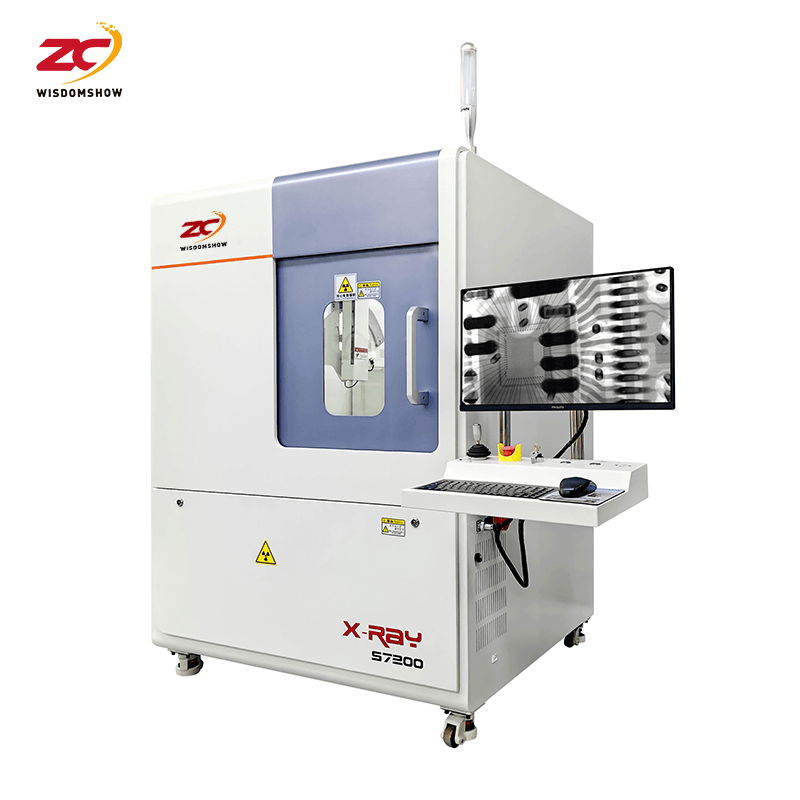

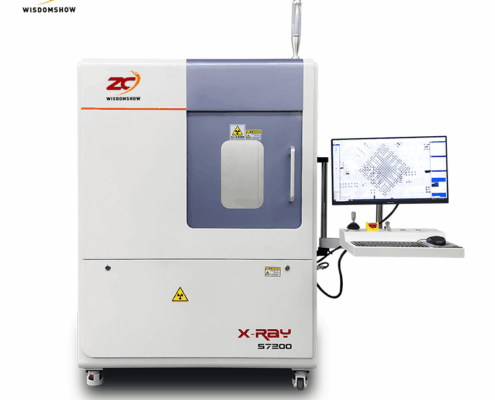

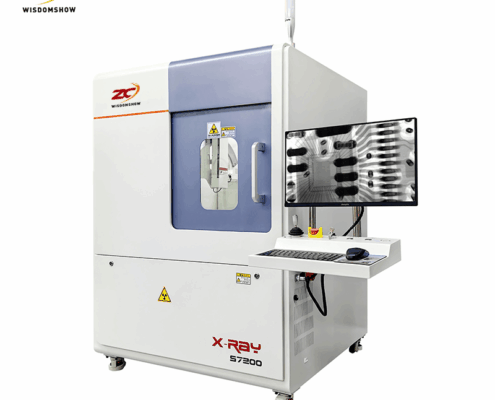

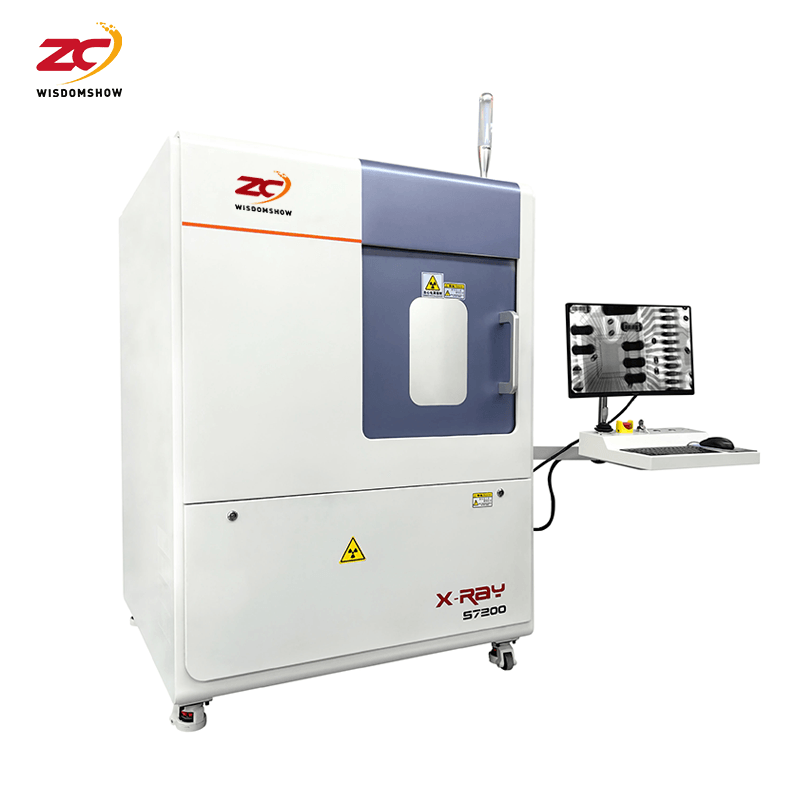

S-7200 Automatic Microfocus X-Ray Inspection System AI Integrated for Electronics Manufacturing 220V PLC Core PCB BGA IC

The S-7200 Automatic Microfocus X-Ray Inspection System is designed for advanced electronics manufacturing applications. It features AI integration for intelligent defect detection and analysis. The system supports precise inspection of PCB, BGA, and IC components. With a 220V PLC core system, it ensures stable and efficient operation. Ideal for industrial use, it delivers high accuracy and reliable inspection performance.

AI integration improves inspection accuracy and defect detection
Microfocus X-ray system ensures detailed internal component imaging
Supports PCB BGA IC electronics manufacturing applications effectively
PLC based control system ensures stable machine operation
High precision inspection enhances overall product quality control
Designed for industrial use with reliable performance output

Key Attributes Description FAQ Video

Previous Next

Key Attributes

Voltage	220 V / 110 V	Power (W)	10 kW
Core Components	PLC	Machinery Test Report	Provided
Warranty	1 Year	Video Outgoing Inspection	Provided
Weight (kg)	1360 kg	Brand Name	Wisdomshow
Place of Origin	Guangdong, China	Product Name	S-7200
Function	Electronic Manufacturing / Semiconductor / BGA / FPA	Keyword	High-definition Micro Focal Spot Tube
Feature	High Efficiency Automatic Welding Robot	Model	S-7200 X-RAY Detection Equipment
Power	1600W X-RAY System	Brand	WISDOMSHOW
Power Supply	110–220V X-RAY System	Control	Automatic X-RAY Detection System
Size	1500 × 1300 × 1800 mm

Packaging and Delivery

Selling Units	Single Item	Package Size per Batch	82 × 72 × 89 cm
Gross Weight per Batch	120.000 kg

Main Description

Closed Tube From HAMAMATSU Japan.
Imported Detector from Korea Rayence.
Micro-focus
Spot size down to 5µ
5″ x 5″ or 4″ x 3″ high resolution and ultra resolution CMOS digital flat pane imagel detectors
60° camera tilt for oblique angle viewing
22″ x 18″ Inspection Stage with 350° Rotation
Color mapping camera with zoom window provides easy location and identification of faults
Z axis movement of the x-ray tube and detector
Computer controlled kV and mA settings
Computer controlled variable speed X-Y stage (and rotate)
Simple point and click, intuitive GUI provides access to create advanced inspection routines
All s/w tools standard including (but not limited to)
BGA Void detection and automatic calculations
Mobile Flex Cable FPC x-ray inspection
SMT Mounting and PCB X-ray inspection
Easy macro recording for intuitive step and repeat programming
Various measuring tools for TH, radius, area, perimeter, etc
Industrial PC with Windows 7 , 24″ LCD flat panel display

SS7200 IC IGBT xray machine for welding soldering inspection

BGA Solder Ball Bubble Caculation
IC Chips Inside Connector Wire Inspection
PCB FPC Mobile Flex Cable Soldering Inspection
Inspect the Voids under Joint
PCBA BGA/IC LED Aliminum die casting Battery connector inspecting

How about the package ? Is it safe during the delivery ?

All PCB X-ray inspection machine is packed by standard strong wooden carton. It is safe during shipping.

What is the delivery way ? How many days will the machine arrive us ?

We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive. Or by Air to your airport (Door to Airport Service ), around 3 days to arrive. Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive.

Do you provide the Warranty ? How about the after sales service ?

1 year warranty free for spare parts, Whole life technicial support. We have professional after sales team, if any question, assistant videos are also provided in after-sale service.

If we come to your factory, if you will provide the free training ?

Yes, warmly welcome you to visit our factory, we will arrange the free training for you.

What is the payment way ?

We accept the payment terms: Bank transfer, WesterUnion, Moneygram, etc.
