New WDS Trinocular Stereo Digital Microscope

Trinocular Stereo Microscope

New WDS Trinocular Stereo Digital Microscope Manual Manipulator for MIG Welding Mode

The New WDS Trinocular Stereo Digital Microscope is designed for precise inspection and repair applications. It features a manual manipulator for accurate control during MIG welding operations. The trinocular system provides clear and detailed imaging for electronic components. Its digital setup enhances visibility and improves repair efficiency. Ideal for professional use, it ensures stable and reliable performance in industrial environments.

Trinocular system provides clear and detailed imaging
Manual manipulator ensures precise welding control operations
MIG welding mode supports electronic repair applications
Digital microscope enhances inspection accuracy and visibility
Stable design ensures reliable industrial performance output
Suitable for professional motherboard and PCB repair

Key Attributes Description

Previous Next

Key Attributes

Machine Type	Welding Manipulator	Voltage	110V / 220V
Current	Dependable	Welding Mode	MIG
Type	Manual	Condition	New
Warranty	1 Year	Material	Plastic
Max Input Power	100 W	Brand Name	WDS
Dimensions	55 × 55 × 35 cm	Place of Origin	Guangdong, China
Usage	Trinocular Microscope	Weight (kg)	30 kg
Name	Trinocular Industrial Microscope	Effective Pixel	14 Megapixel
Pixel Size	1.43 × 1.43 µm	Frame Rate	30 fps
Video Format	AVI	Definition	Full HD
Digital Magnification	5× Zoom	White Balance	Auto / Manual
Color	R / G / B Adjustable	Freeze Function	Supported

Packaging and Delivery

Selling Units	Single Item	Package Size per Batch	55 × 55 × 35 cm
Gross Weight per Batch	29.000 kg

Spectification of Microscope Camera

mage sensor:14 megapixel Panasonic sensor 1/2.3 inch
Model: Camera with HDMI USB2.0 two output
Image format: JPG
Image resolution: 4320*3240 (for TF card) 1280 *720 @ 30FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1280 *720 @ 30FPS (for TF Card)
USB Video resolution: 1280 *720 @ 30FPS
White Balance: Auto
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Line: different color,4 horizontal line , 4 vertical line,any positions

Function of Microscope Camera

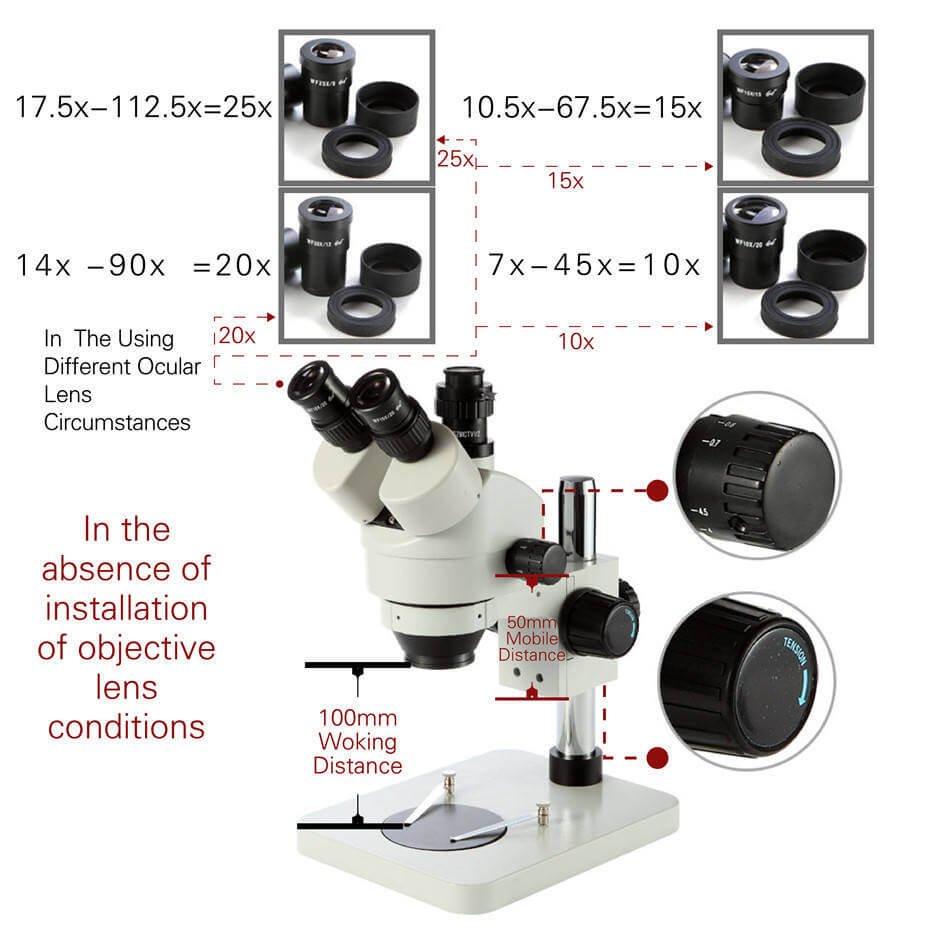

Eyepieces:Wide field high point eyepiece WF10X20mm
View head: trinocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X. inter-pupillary range 54~76mm, both two tube diaper adjustment(±5)
Objective lens: 0.5X, 2.0X for option.
Magnification: Total 3.5X—180X zoom range.
Stand: Double-Arm Boom Stand
Illuminator: separate led light be used.
Focus: Simul focus (without switch bar)
144 Bulbs Microscope LED Ring Light:144 bright white LED bulbs 100,000 hours of life
Intense and focused shadow-free illumination.
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm

Maintenance of Microscope Camera

All lenses must be kept clean.Fine dust on the surface of the lens should be blown off with hand blower or wiped off gently with a soft lens tissue.
Fingerprints or oil marked on it should be wiped off with a tissue moistened with a small amount of xylene or a 3:7 mixture of alcohol and other.
Never use the organce solution to clean the other surface(especially the plastic surfaces).If necessary,please choose the neutral detergent.
Don’t take the microscope apart for fearing that it is damaged.
After using,cover the microscope with the dust-cover provided and store it in a dry and clean place free from moisture to prevent dust.
