Accurate Chip Reballing

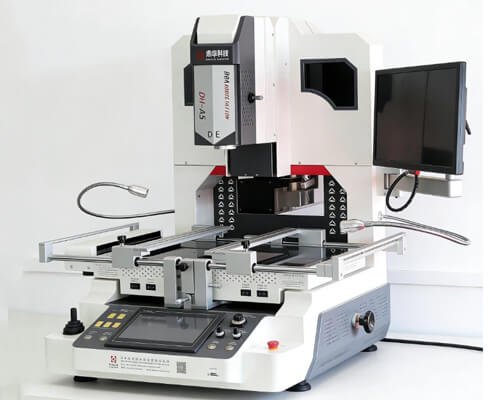

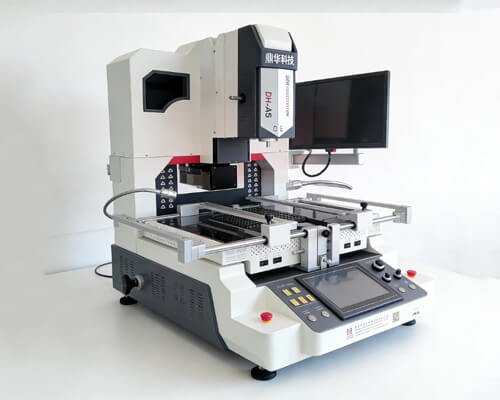

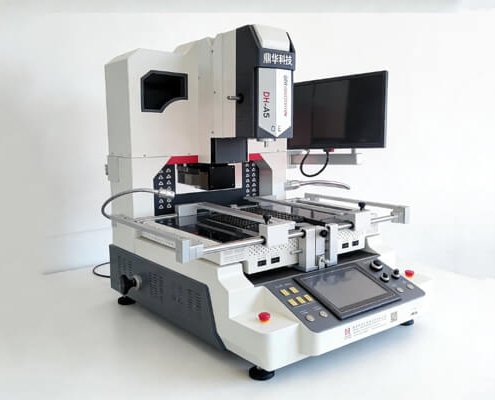

The DH-A5 is a professional-grade, automated BGA rework station designed for precision soldering and repair of modern electronics. It is the ideal mobile repairing machine for advanced workshops.
The DH-A5 redefines precision in electronics repair. This industrial-grade BGA rework station is engineered for flawless soldering, component placement, and removal of BGA, CSP, and QFN packages. Integrating an embedded IPC, PLC control, and real-time thermal profiling, it delivers the accuracy and repeatability demanded by modern mobile phone repair tools & equipments and complex SMT rework applications. This intelligent mobile repairing machine sets a new standard for reliability in professional workshops.
At the heart of this rework station soldering system is an embedded industrial PC coupled with a high-definition touchscreen HMI and PLC.
Dual-Curve Real-Time Display: The interface simultaneously shows both the set and actual temperature profiles, allowing for instant visual comparison and verification.
Instant Curve Analysis & Correction: Proprietary software provides live analysis during the reflow process, identifying deviations and suggesting corrections to guarantee perfect soldering joints every time.
Secure Data Management: Features password-protected access and extensive profile storage for different BGA types, making it a leader in data-driven process control among professional mobile phone repair tools & equipments.
Achieving consistent results starts with unparalleled thermal control, maintained within a ±2°C deviation.
Closed-Loop K-Type Thermocouple Control: Works in tandem with the PLC and dedicated temperature modules for fully automatic compensation and stability.
External Calibration Interface: Allows for independent verification and precision calibration using third-party metrology tools, ensuring absolute trust in the thermal data.
Three-Zone Independent PID Heating: Independent control over top, bottom, and preheat zones using advanced PID algorithms. Each zone supports up to 8 programmable segments, enabling synchronized multi-stage heating for perfectly even PCB temperature distribution.
Accuracy is guaranteed by a combination of superior vision and mechanized control.

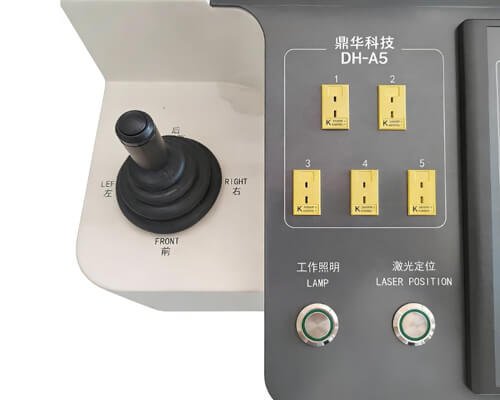

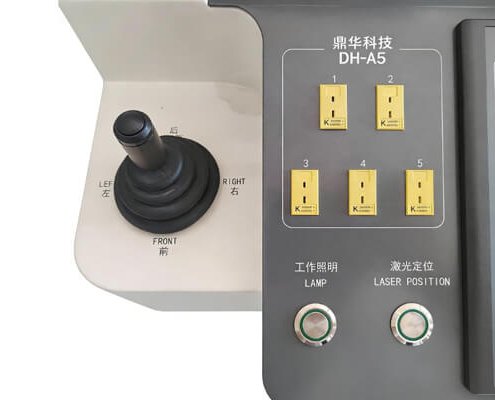

Digital Vision Alignment System: A high-resolution optical system with joystick control provides a complete, unobstructed view of the BGA’s corners and center, eliminating “blind spots.”
Servo-Driven Motion Control: High-response servo motors drive the X, Y, and Z axes, enabling both fine micro-adjustments and rapid positioning. The V-groove PCB platform accommodates boards of various sizes and layouts.
Full Automation Suite: Integrated BGA auto feeder and catcher system completes the pick-place-solder-catch cycle, transforming this mobile repairing machine into a highly efficient, smart production cell.
Every detail is crafted for optimal results and operator safety.
Universal Flexible Fixtures: Protect PCB edges from damage and prevent board warping during heating, adapting to a wide range of component sizes.
360° Rotatable Titanium Nozzles: Available in multiple specs for easy installation, ensuring targeted hot air flow.
Smart Cooling & Alert Systems: A high-power cross-flow fan ensures rapid cooldown to prevent PCB deformation. An audible pre-alert function notifies the operator 5-10 seconds before cycle completion. An automatic post-operation cooldown cycle protects the machine’s longevity.

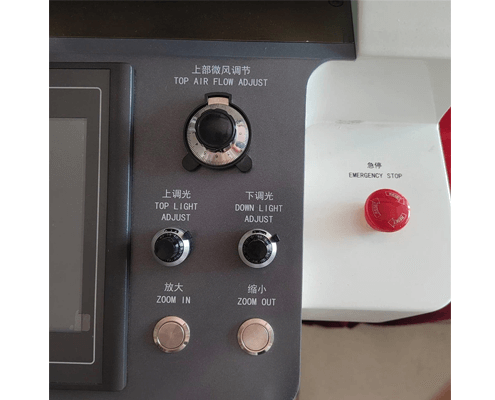

Safety & Compliance: CE certified and equipped with emergency stop and auto power-off protection.
| Feature Category | Specification Details |
|---|---|
| Control System | Embedded Industrial PC + PLC, HD Touchscreen HMI |
| Temperature Control Accuracy | ±2°C (Closed-loop K-Type Thermocouple) |
| Heating Zones | Three Independent Zones: Top Hot Air, Bottom Hot Air, Preheater |
| Temperature Segments | Up to 8 programmable segments per zone |
| Profile Management | Real-time display, analysis, storage, and correction |
| Positioning System | Servo Motor Driven, XYZ Three-Axis Precision Control |
| Alignment System | High-Precision Digital Vision with Joystick Control |
| Cooling System | High-Power Cross-Flow Forced Cooling Fan |
| Safety Standards | CE Certified, Emergency Stop, Automatic Protection |
With research and development as our foundation, we have a professional R&D team that continuously updates our technology to meet the demands of market development. We’ll help you solve any problems you may have.
With quality as the core, imported core components ensure durability and reliable quality.
After-sales service is guaranteed, and technical support is available during the warranty period.
