IR6500 BGA Rework Station

Reliable Infrared Precision for BGA Rework

IR6500 BGA Rework Station

The IR6500 BGA rework station, also called DH-A01R, which is the cheapest and practical model, features with a top infrared heating zone, an IR preheating zone for a large motherboard to be heating, application for mobile phone, computer and other electronics.

Infrared heating system for uniform and controlled rework
Independent top and bottom heating zones for stable PCB processing
Precise temperature control for BGA, QFN, and SMD components
Supports lead-free and leaded solder applications
User-friendly operation ideal for service centers and repair labs

Product Description FAQ

Previous Next

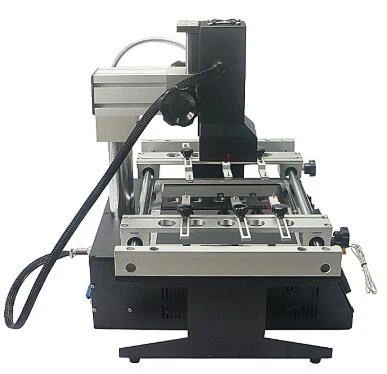

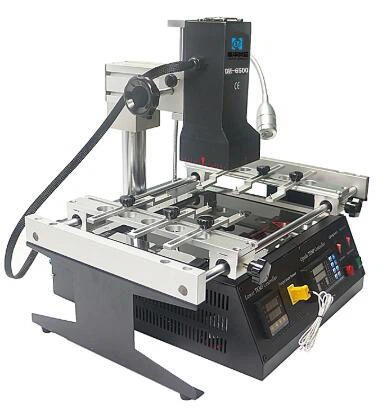

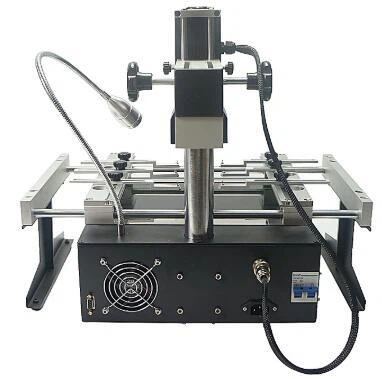

DH-6500 IR BGA rework station

DH-6500 a universal infrared repair complex with digital temperature controllers and ceramic heatings for Xbox, PS3 BGA chips, laptops, pcs, etc, repaired.

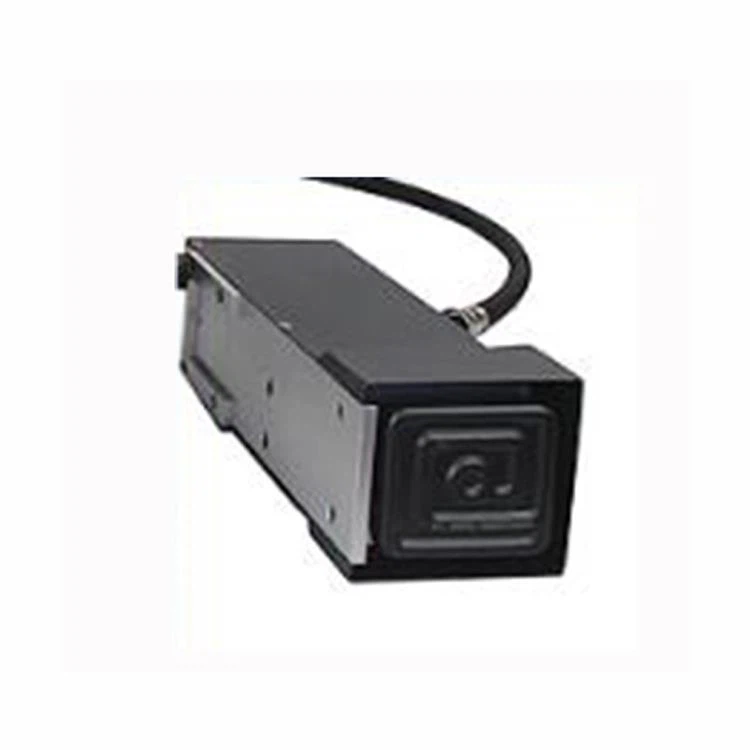

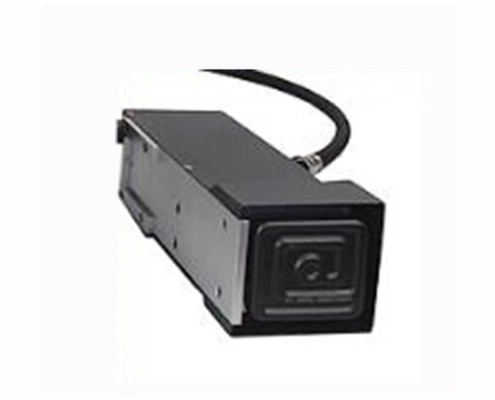

The upper IR ceramic heating, wavelength 2~8um, the heating area is up to 80*80mm, application for Xbox, gaming console motherboard, and other chip-level repairing.

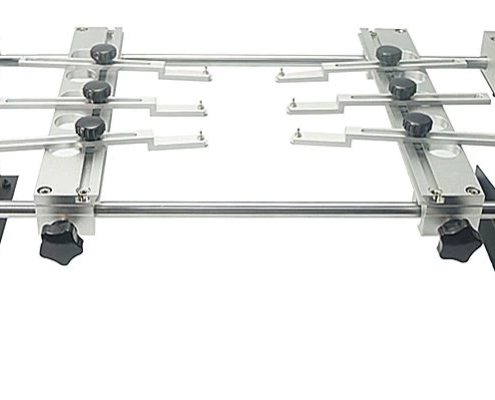

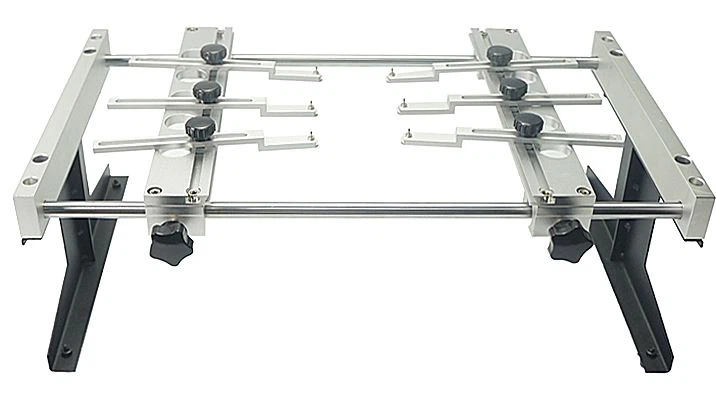

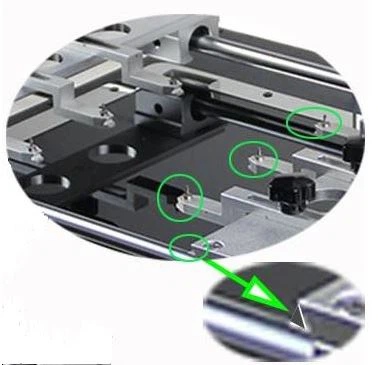

The universal fixtures, 6 pieces of ones with a small notch and a thin&raised pin, which can be used for unregular motherboards to be fixed on the working bench, the PCB size can be up to 300*360mm.

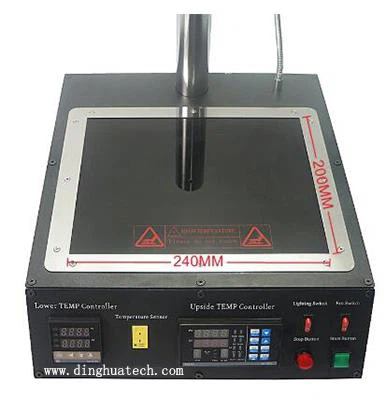

The bottom preheating zone, covered by anti-high-temperature glass-shield, its heating area is 200*240mm, most of motherboards can be used on it.

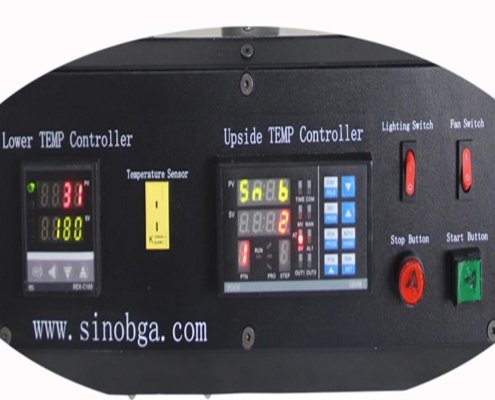

2 temperature controllers for the machines’ time and temperature setting, there is 4 temperature-zones canbe set for every temperature profiles, and 10 groups of temperature profiles can be saved.
