Hot Selling WDS-650

Smart Rework Solution

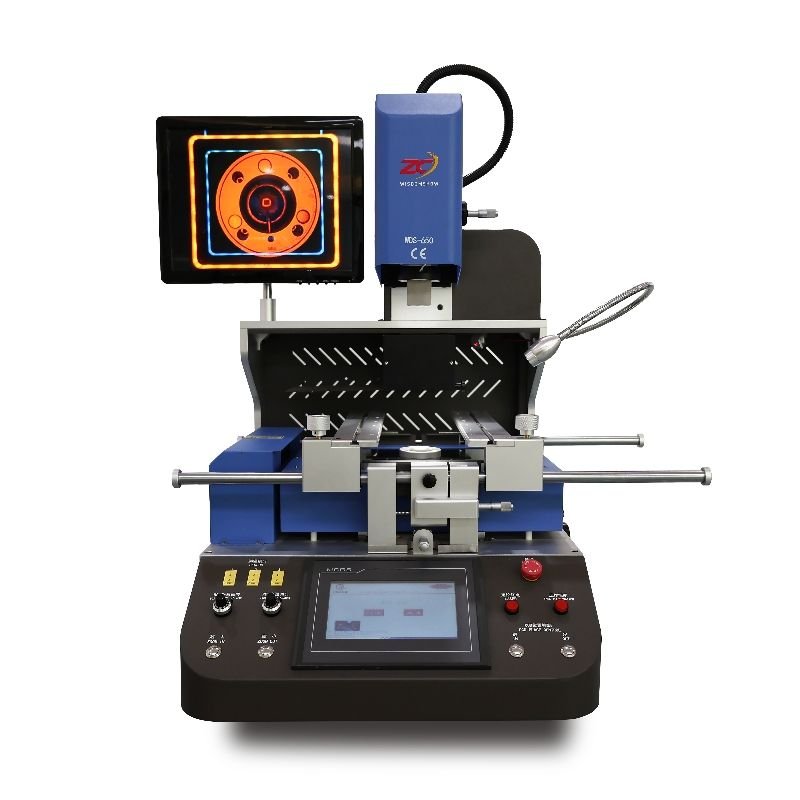

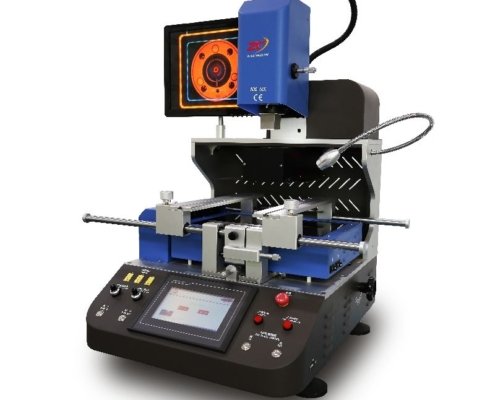

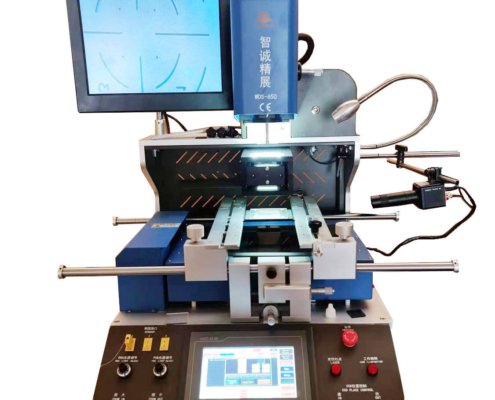

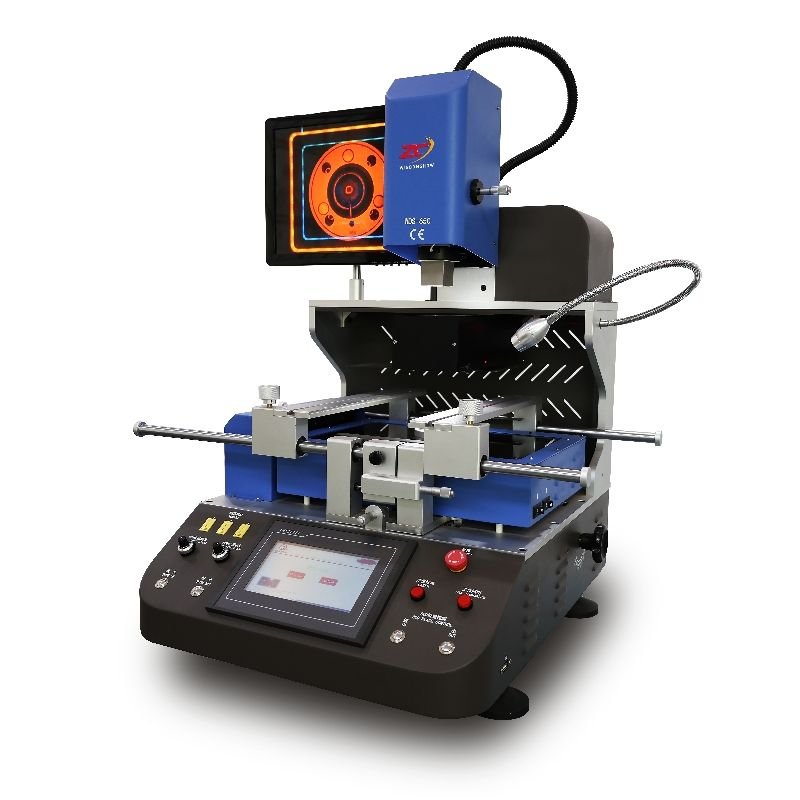

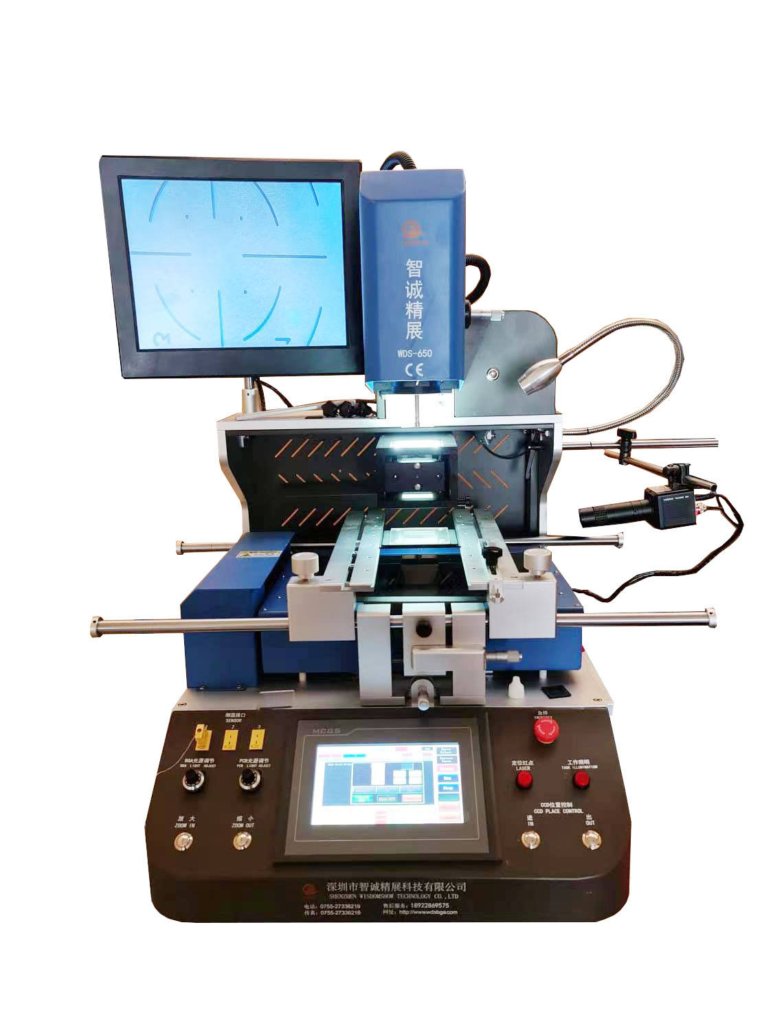

Hot Selling WDS-650 BGA Rework Station with Optical Alignment for Mobile Phone Laptop Computer PS5 PS4 Gamebox Consoles Repair

The WDS-650 BGA Rework Station with Optical Alignment is a high-performance, semi-automatic repair solution designed for precise and reliable PCB rework across mobile phones, laptops, computers, and gaming consoles like PS5 and PS4. Equipped with an advanced CCD optical alignment system, it ensures accurate chip placement and minimizes errors during BGA rework. Its powerful multi-zone heating system, combining hot air and infrared technology, delivers uniform heat distribution for safe component removal and installation without damaging the board. With intelligent temperature control, a user-friendly touchscreen interface, and stable performance, the WDS-650 is an ideal choice for professional technicians and electronics repair centers seeking efficiency, precision, and consistent results.

Optical alignment ensures precise and accurate chip placement
Three-zone heating provides uniform and safe PCB rework
Advanced temperature control delivers stable performance
Suitable for mobiles, laptops, computers, and gaming consoles

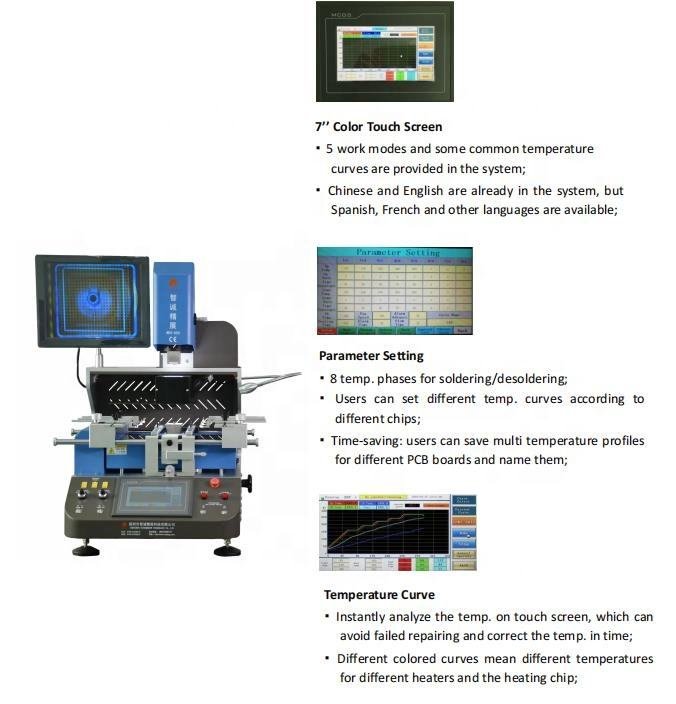

User-friendly touchscreen allows easy operation
Reliable system designed for professional repair use

Description Key Attributes

Previous Next

Technical Specifications

Total Power	6800W
Upper Heating Power	1200W
Lower Heating Power	1200W
Lower IR Heating Power	4000W (2000W controlled)
Power Supply	Single Phase AC 220V ±10, 50Hz
Positioning Method	V-shaped slot, adjustable PCB bracket in X & Y direction, laser positioning for fast alignment
Temperature Control	High-precision K-type thermocouple (K sensor), closed-loop control with ±1°C accuracy
Electrical System	Touch screen + temperature control module + PLC + stepper driver
Maximum PCB Size	470 × 380 mm
Minimum PCB Size	10 × 10 mm
Temperature Interfaces	3 pcs
Chip Magnification	2–30 times
PCB Thickness	0.3–5 mm
Applicable Chip Size	1 × 1 mm – 70 × 70 mm
Minimum Chip Spacing	0.15 mm
Max Mounting Load	300 g
Mounting Accuracy	±0.01 mm
Overall Dimensions	655 × 620 × 590 mm
Machine Weight	60 kg

Key Specifications

Input Voltage	AC 110–240V	Maximum Temperature	450°C
Power Source	DC Power Supply	Warranty	1 Year
Surface Treatment	Nitride Coating	Condition	New
Type	Soldering Station	Brand Name	WDS
Place of Origin	Guangdong, China	Usage	Welding
Weight	60 kg
