Desktop Automated Programming System Ah-160

The Desktop Automated Programming System AH-160 is designed for fast and accurate device programming. It ensures high efficiency in electronic testing and production environments. The system supports automated operation for reduced manual intervention and errors. Its stable performance improves productivity and consistency in programming tasks. Ideal for industrial use, it delivers reliable and precise results.

Automated system ensures fast precise programming operation
Desktop design saves workspace and improves efficiency
Supports multiple device programming and testing applications
Reduces manual errors with automated control system
Stable performance ensures reliable industrial usage daily
Ideal for electronics manufacturing and repair workflows

Description Features Specification Video

Previous Next

Desktop Automated Programming System AH-160 Introduction

Desktop automated programming system AH-160 is a compact automated universal programming system supporting eMMC, Flash and Microcontroller.
AH-160 can be used in office, lab or production line.
Moreover, AH-160 universal programmer is the best programming solution for the high-density devices because of its superb ultra-high throughput and affordable price.

Standard Accessories

AH-160 Universal Programmer Main unit x 1
SU-320 Stand-alone Universal & Gang Programmer x4
CD(included driver and manual)x1
USB cable x 1
AC cable x 1

Optional Module Adapter

NOR-TSOP48-X4, NOR-TSOP56-29-X4, NOR-TSOP56-J3-X4, NOR-TSOP56-P3-X4, SFLASH-SOP16-X4, SFLASH-BGA24-4x6B-X4, SFLASH-BGA24-5x5B-X4, SOP8-207-X4, SOP8-150-X4, SON8-4×4-X4, WSON8-1.97×2.46-X4, WSON8-2×3-X4, WSON8-5×6-X4, WSON8-6×8-X4, BGA64-J3-P3-X4(10×13), BGA64-J3-P3-X4(10×8), BGA64-29-X4(10×13), BGA64-29-X4(11×13), BGA64-29-X4(9×9) …etc

Desktop Automated Programming System AH-160 Features

Office Automation Design-The system power is 100~240V. No need for external air compressor. Just connect an USB cable to PC, and feed the IC tray, run the operation software, and AH-160 will satisfy your office and lab automation need.
Flexible Ultra-high Programming module-AH-160 is equipped with SU-320 x 4 which is able to support 4~16 reliable and outstanding quality programming.

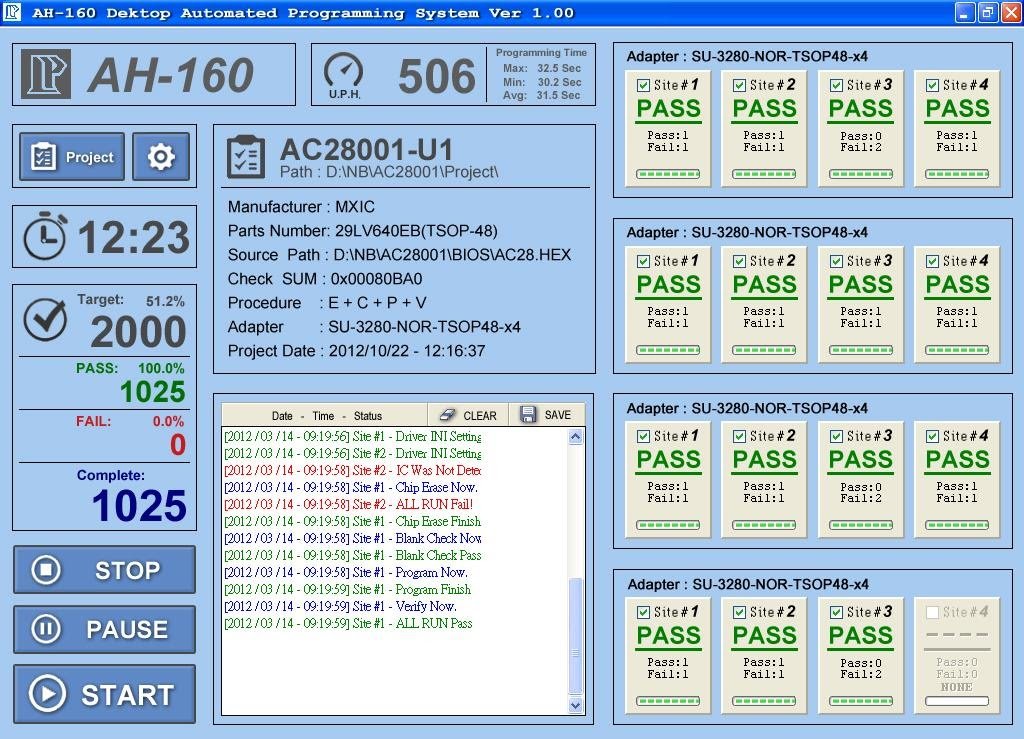

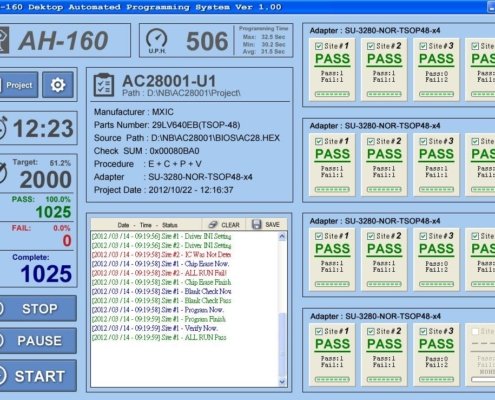

Friendly Operation-AH-160 provides easy-to-learn and easy-to-use software and hardware. The GUI software provides automatic history record function. Moreover, it provides calibration wizard which makes the process of changing package module and calibrating much easier.The hardware is designed for plug-and-play for your easy self-learning.

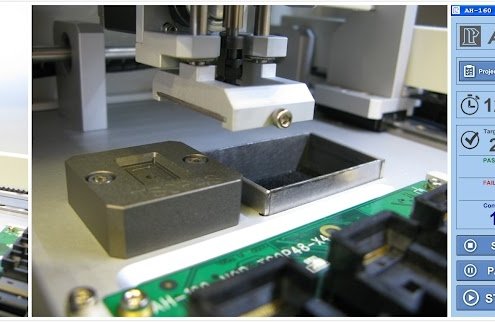

Ultra-high Throughput-Desktop automated programming system AH-160 is specially designed for automatic tray-in/out programming solution. The state of the art mechanism delivers 550 UPH at the zero programming time.

Specification

Throughput	550 U.P.H (Zero Programming Time)
Pick & Place Accuracy	X ±0.03mm, Y ±0.03mm, Z ±0.2mm, Bar ±0.01mm
Max Stroke	X 400mm, Y 310mm, Z 18mm, Bar 5mm
Pick & Place Method	Single Vacuum Nozzles
Position System	Preprocessor Device Dimensions 30 × 30mm
Programming System	SU-320 Stand-alone Universal & Gang Programmer
Socket Site	4–16 Sockets
Device Supported	NOR Flash, NAND Flash, EEPROM
Supported File Formats	Binary / Machine Code, Intel HEX, TEK HEX, Motorola HEX
Feeding System	Manual Tray-in / Tray-out (JEDEC Standard)
Dimensions	520 (H) × 700 (L) × 550 (W) mm
Net Weight	70 kg
Operating System	Windows 7 / Vista / XP (32-bit & 64-bit)
Processor	Core 2 Duo or Above
Memory	2 GB RAM or Above
Hard Disk	500 MB Minimum, 4 GB Buffer
Interface	USB 2.0 High Speed
Input Voltage	AC100V–240V, Single-phase, 3-wire
Frequency	50 / 60 Hz
Power Consumption	200 W (Max)
