Best BGA Reballing Machine

Effortless Reballing Performance

Best BGA Reballing Machine

The Dinghua DH-5880 is a professional BGA rework machine designed for high-precision electronics servicing. As a reliable motherboard repair machine, it features a 3 zones heating BGA station with independent control of the upper hot air, lower hot air, and bottom infrared preheating zones, ensuring uniform heat distribution, preventing PCB warping, and delivering stable rework performance on high-density PCBs.

Key Featuers

Precision Chip Alignment
Accurate Solder Balling
Efficient Rework Process
Safe PCB Handling
Reliable Performance Guarantee

Technical Data Products Parameters Products application Why choose us

Previous Next

Product Overview

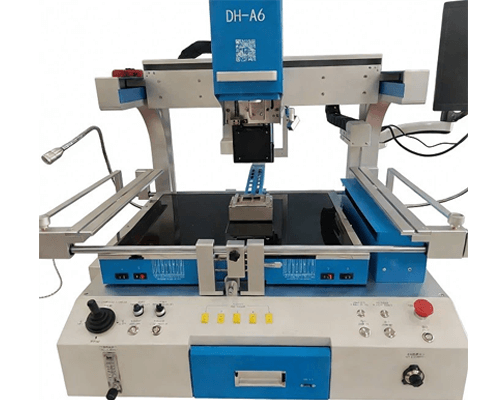

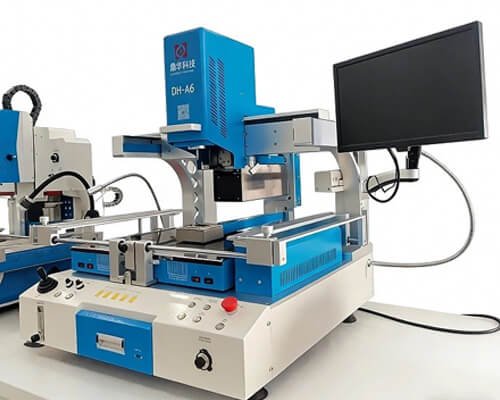

Automated BGA Rework & Desoldering Station

Next-Generation Precision for Modern Electronics Repair

The DH-A6 is a next-generation bga rework station machine that sets a new standard for precision and ease of use. This all-in-one unit seamlessly combines the capabilities of a high-accuracy soldering bga station with the automated efficiency of advanced desoldering stations. Engineered to eliminate manual errors, it delivers consistent, production-grade repair results for modern, high-density electronics.

Key Features

1.Precision Vision Alignment: This bga rework station machine integrates optical vision and laser positioning to guarantee perfect chip-to-pad alignment, preventing costly offsets and misplacements.

2.Full Automated Workflow: As a complete desoldering stations and soldering solution, it performs automatic component removal, soldering, and chip collection in a single, hands-off cycle, drastically boosting workshop productivity.

3.Intelligent Process Control: The soldering bga station features adjustable “Micro-Wind” airflow for delicate parts, movable heating zones for flexibility, and 5 external temperature probes for absolute thermal reliability.

4.User-Centric Operation: Designed for ease of use, its intuitive touchscreen with pre-set programs minimizes training time. A USB port enables easy data logging and software updates.

5.Built-In Quality Assurance: An automatic post-repair scan provides final verification, ensuring every job meets the high standard expected from a professional bga rework station machine.

Products Parameters

Category	Specification	Details / Notes
Power & Electrical	Total Power	7000W
	Top Heater Power	1200W
	Bottom Heater Power	Zone 2: 1200W, Zone 3: 3600W
	Power Supply	AC 220V ±10%, 50/60Hz
Physical Dimensions	Machine Dimensions (L×W×H)	650 × 700 × 850 mm
	Net Weight	92 kg
	PCB Size Compatibility	Max: 550 × 600 mm / Min: 10 × 10 mm
Temperature Control	Control Method	K-type Thermocouple, Closed-loop control
	Temperature Accuracy	±1°C
	External Temp. Sensor Ports	5 (Standard), Expandable
Mechanical & Positioning	PCB Positioning	V-groove slot, PCB holder adjustable in X/Y, includes universal fixture
	Workbench Fine-Tuning	±15mm (Front/Back), ±15mm (Left/Right)
	Placement Accuracy	±0.01 mm
Vision System	Camera Magnification	10x to 100x
Component Compatibility	Supported BGA Chip Size	2×2 mm to 80×80 mm
	Minimum Chip Pitch	0.15 mm

Products application

Applications
Ideal for repairing a wide range of SMD components including BGA, CSP, QFN, SOP, QFP, PLCC, and more. It is the essential core soldering bga station for any professional workshop handling smartphones, tablets, laptops, and other complex PCBAs.

Why Choose Dinghua DH-A6?
Transform complex, skill-dependent rework into a simple, push-button process. The SmartVision Pro bga rework station machine automates precision, guaranteeing reliable quality with every use. By integrating the best features of automated desoldering stations and a precision soldering bga station, it reduces operational dependency on highly skilled technicians, increases throughput, and strengthens your shop’s reputation for quality and efficiency.

Why choose us

After years of development and focused efforts, the company possesses 78 patents and intellectual property rights, 97 quality control processes, and its products cover three major series: low, medium, and high-end. It has completed the research and development and production of products ranging from manual and semi-automatic to fully automatic. Since its establishment in 2011, the company has continuously expanded its scale and now has two major subsidiaries: “Shenzhen Dinghua Kechuang Automation Co., Ltd.” and “Shenzhen Dinghua Kechuang Technology Co., Ltd.”

Why choose our products

With research and development as our foundation, we have a professional R&D team that continuously updates our technology to meet the demands of market development. We’ll help you solve any problems you may have.

With quality as the core, imported core components ensure durability and reliable quality.

After-sales service is guaranteed, and technical support is available during the warranty period.
