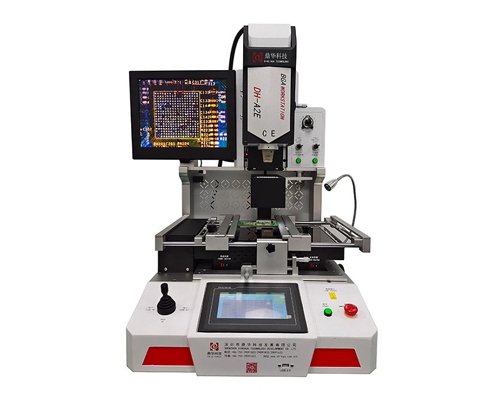

The DH-A2E represents a leap forward in rework technology, combining industrial automation with sub-millimeter precision to tackle the most challenging PCB repairs. This fully-featured ball grid array rework station is built for environments where repeatability, uptime, and flawless results are non-negotiable.

Features:

• Sub Millimeter Accuracy
• Industrial Automation Control
• Multi Zone Heating
• High Repeatability Performance
• Professional Repair Precision

Description Products Advantages Products Parameters Our Company

Previous Next

Description

DH-A2E: The Next Evolution in Automated Precision Rework

The DH-A2E sets a new benchmark for automated, high-precision PCB repair. Designed as an advanced ball grid array rework station, it integrates optical alignment with fully automated pick-and-place, desoldering, and soldering cycles, significantly reducing operator dependency and human error.

Engineered for both accuracy and ease of use, this smd rework station achieves remarkable specifications: temperature control within ±1°C and positioning accuracy of 0.01mm. Its intuitive touch-screen interface with pre-loaded programs allows technicians of all skill levels to execute complex rework bga automatic processes with confidence. From delicate micro-BGAs to large components, the DH-A2E handles a wide range of SMT repairs, making it the ideal cornerstone for any modern electronics repair lab or production line seeking to boost yield and consistency.

Products Advantages

1.Fully Automated Rework Cycle: Experience true hands-off operation with automatic chip removal, placement, and soldering. The integrated vision system and automated material handling (pick, feed, camera positioning) complete a rework bga automatic process that minimizes manual intervention and maximizes throughput.

2.Sub-Millimeter Precision Alignment: An integrated high-precision optical alignment system, combined with a motorized linear slide (X, Y, Z-axis fine adjustment), ensures component placement with an accuracy of 0.01mm, virtually eliminating misalignment.

3.Industrial-Grade Thermal Management: A three-zone independent heating system (top, bottom, preheat) with closed-loop K-type thermocouple control maintains a temperature deviation within ±1°C. The large-area lower heater accommodates various PCB sizes for uniform heating.

4.Intuitive Touch-Screen Control: The industrial PC with HD touchscreen and PLC control offers both manual and automatic modes. It provides real-time temperature curve graphing, analysis, and stores vast profiles for one-touch operation, simplifying complex tasks.

Products Parameters

Category	Specification
Model	DH-A2E
Total Power	5700W
Heating Zones	3 (Top: 1200W, Bottom Zone 2: 1200W, Zone 3: 3200W)
Power Supply	AC220V ±10%, 50/60Hz
Temperature Control	Closed-loop with K-Type Thermocouple
Temperature Accuracy	±1°C
Positioning Accuracy	0.01mm
Max. PCB Size	450 x 500 mm
Min. PCB Size	10 x 10 mm
Compatible Chip Size	2×2 mm to 80×80 mm
Min. Chip Pitch	0.1mm
Dimensions (LxWxH)	600 x 700 x 850 mm
Net Weight	70 kg

Designed for the Professional Workshop:

Beyond core specs, the DH-A2E is built for daily professional use. Features like adjustable airflow for small components, 360° rotatable nozzles, universal fixtures, rapid cooling, and voice alerts create a seamless workflow. Its rugged smd rework station construction, CE certification, and emergency safety features ensure reliable and safe operation in demanding settings.

Ideal For: Electronics Manufacturing Services (EMS), high-reliability repair centers (automotive, aerospace, medical), R&D departments, and any operation requiring dependable, automated precision rework.
