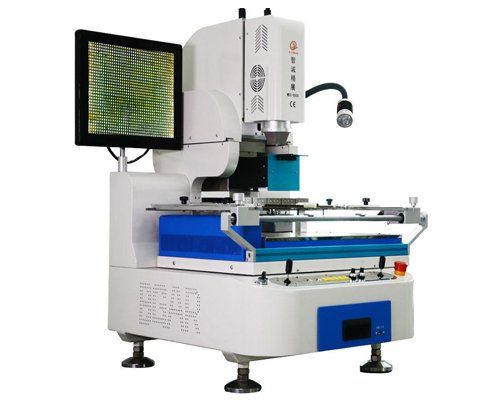

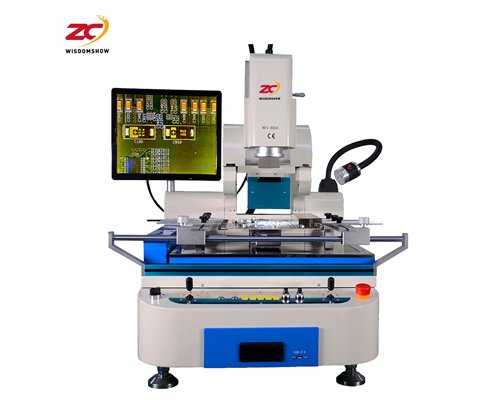

Automatic Motherboard Repair Machine WDS-800A SMD BGA Rework Station for Industrial Motherboard Soldering Repairing

The WDS-800A Automatic Motherboard Repair Machine is a high-performance BGA rework station designed for precise SMD and PCB soldering applications in industrial environments. It supports a wide range of components including BGA, QFN, CSP, and more, ensuring accurate placement, stable heating, and efficient rework processes. With advanced temperature control, reliable alignment systems, and user-friendly operation, the WDS-800A delivers consistent, high-quality repair results, making it an ideal solution for professional motherboard and electronic circuit repair tasks.

High precision BGA rework performance
Supports wide range of SMD components
Advanced temperature control system
Stable and accurate alignment process
Ideal for industrial motherboard repair
Durable and reliable machine design

Description Key Attributes

Previous Next

Application:

All mobile phone ic chip repair such as iPhone serious, Samsung, Huawei, etc;
PC, tablet, notebook, desktop, laptop motherboard bga rework and repair;
Game consoles applications such as Xbox360, PS2, PS3, PS4 Wii bga rework and repair;
Large circuit board maintenance, such TV, LED, service;
Almost all PCB board ic removal and ic mount.

Parameters

Total Power	8400 W	Power Supply	Two-phase 220V, 50/60Hz
Upper Heating Power	1600 W	Lower Heating Power	1600 W
IR Heating Power	5000 W (2000 W Controlled)	Temperature Control	K-Type Thermocouple, ±1°C Accuracy
Positioning Method	V-slot PCB fixing, laser positioning lights, joystick-controlled X & Y axis movement
Drive Motors	6 Motors (X/Y movement, alignment lens, Z-axis lift, heating head control)
2nd Temp Zone Control	Electric Automatic Lifting	Suction Device	Standard
Electrical Components	Taiwan Touch Screen, Panasonic PLC, Servo System, Stepper Driver
Max PCB Size	610 × 520 mm	Min PCB Size	10 × 10 mm
PCB Thickness	0.5 – 8 mm	Temperature Interfaces	5 pcs
Zoom Range	2 – 50×	Applicable Chip Size	0.8 × 0.8 mm – 120 × 120 mm
Max Mounting Load	300 g	Mounting Accuracy	±0.01 mm
Dimensions	L820 × W950 × H950 mm	Machine Weight	Approx. 135 kg

Key Attributes

Machine Type	Pick and Place Machine	Voltage	220 V
Core Components	PLC	Warranty	1 Year
Machinery Test Report	Provided	Video Outgoing Inspection	Provided
Weight	140 kg	Brand Name	WDS / Wisdomshow
Place of Origin	China	Application	BGA, POP, CCGA, QFN, CSP, LGA, Micro Components
Product Name	WDS-800A	Total Power	7600 W
PCB Thickness	0.5 – 8 mm	Temperature Measuring Interface	5 pcs
PCB Size	Max 610 × 480 mm, Min 10 × 10 mm	Overall Dimension	L970 × W700 × H830 mm
Machine Weight	About 140 kg	Warranty (Core Components)	1 Year
