90kV Micro Focus X Ray Tube

Sharp Focus. Superior Clarity.

90kV Microfocus X-Ray Tube

The 90KV X-ray light tube uses high-precision ceramic targets, an 80-degree wide-angle radiation design to achieve uniform irradiation, and dual-focus technology to balance penetration and resolution. It is suitable for industrial non-destructive detecting, and has a lifespan of more than 10,000 hours.

90kV microfocus source for high-detail X-ray imaging
Excellent resolution for fine solder and micro defects
Stable performance with long operational life
Ideal for precision electronics inspection

Product Description Products Parameter Products Applications Products Package

Previous Next

An X-ray microfocus source with an 80-degree radiation angle can cover a wider irradiation area, making it suitable for scenarios that require large-area uniform exposure, such as inspection of large workpieces or container security checks. In contrast, a 40-degree radiation angle tube provides more concentrated energy, making it ideal for high-precision localized inspection, such as electronic components or micron-level defect analysis.

X-ray radiation angle	80°
Xray currency adjusted range	10~220uA
Minimum distance to target	9.5mm
Data transmission	RS-232C
Power	8W
Image resolution	5/10um
Weight	approx 10kg

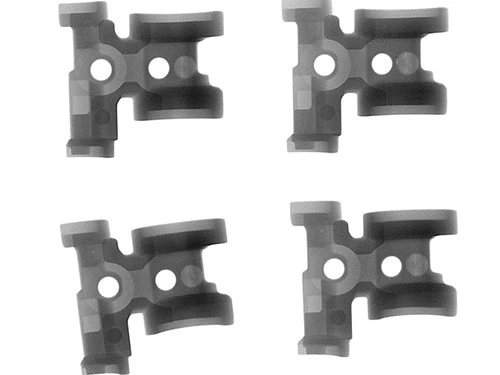

Our microfocus X-ray tube technology has improved the inspection of smartphone die-cast components,
delivering great precision at the 90kV. As an important participant of X-ray tube manufacturer, we have developed solutions that surpass even the Hamamatsu X-ray source in terms of resolution and stability.

The xray tube’s ultra-fine focal spot ensures sharper imaging, which is critical for detecting micron-level defects
in complex smartphone parts such as frames and housings,our X-ray tube maintains stable performance under high throughput, reducing production-line downtime.

This advantage comes from the core technology that we have masterd, which extends X-ray tube lifespan, lowering
energy consumption. to better control your cost-price on using tools, you can choose our Xray tube source, as it has faster scanning speeds and less maintenance needs.

By integrating our microfocus X-ray systems, smartphone suppliers reach at a higher defect detection rates, ensuring compliance with industry standards,we are redefining the precision of microfocus X-ray tubes in non-destructive detection.

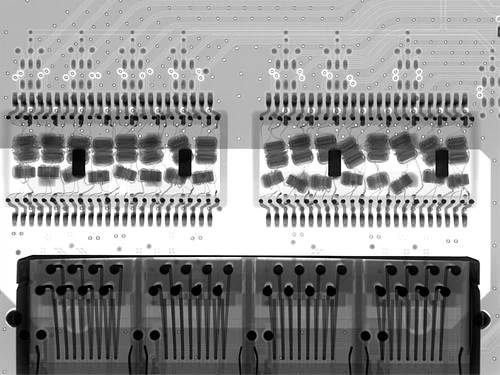

As a qualifacted X ray tube manufacturer, we have developed the 90kV Microfocus X-ray tube, offering high-precision
solutions for automotive ECU inspection. The microfocus X-ray systems feature:

5μm resolution, helping precisely identification of soldering-joint defects.
Intelligent real-time imaging technology improves inspection efficiency by 43.5%
Superior thermal stability compared to similar products (temperature variation <±1.3℃ during 8 hours of continuous operation). which is the first-choice of X-ray non-destructive testing (NDT) equipment manufacturers.

1, Standard Export Wooden cases;
2, Delivery in 2 workdays after payment confirm;
3, Fast delivery options include FedEx, DHL, UPS etc , or by air or by sea;
4, Loading port: Shenzhen or Hongkong.

If you have any further questions or require assistance, please do not hesitate to contact us. We would be more than happy to help you!
